Metcal System Single Output SSC Soldering Cart
Metcal System Single Output SSC Soldering Cart
The MFR-1100 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or tweezers and offers a choice of four hand-pieces. The MFR-1160 comes with a Cartridge Hand-piece especially designed for Metcal SSC cartridges. This system will allow users of the Metcal SP200 Soldering System to continue to use their Metcal SSC cartridges.
Metcal System Single Output SSC Soldering Cart Features and Benefits
- SmartHeat Technology provides exceptional power for high thermal demand applications.
- Four hand-pieces available for increased application solutions for soldering and rework on one system
- Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
- Hand-pieces are ergonomic for operator safety and comfort
- Small Bench Top foot print
- Can be combined and locked with its brother the MFR-2200 dual output series for increased application solutions for soldering and rework.

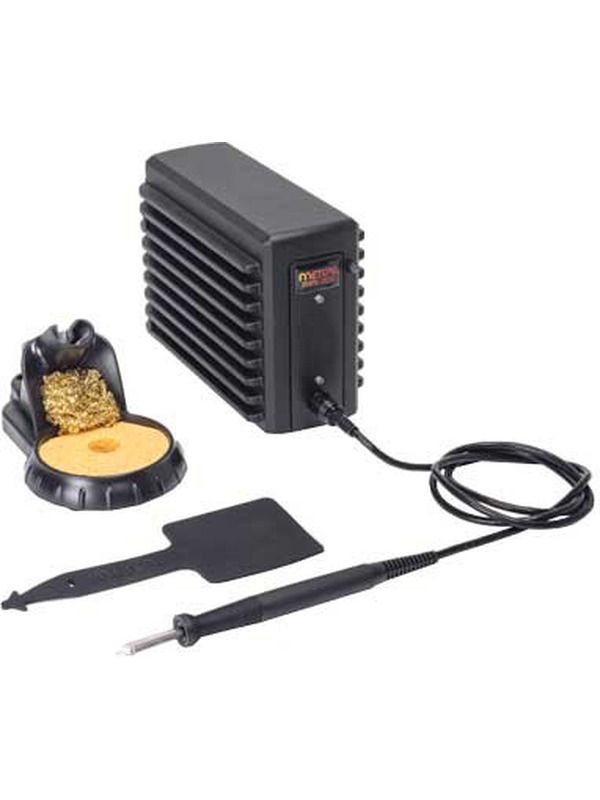

Metcal System Single Output SSC Soldering Cart Product Comprises of
- MFR-PS1100MFR Single Output Power Supply
- MFR-H6-SSCSSC Cartridge soldering Hand-piece for the MFR Series
- WS2Soldering Workstand compatible with PS-HC3 Hand-piece
NOTE: No tip/cartridge included
Tips / Cartridges Series compatible with this system:
- SSC Soldering Cartridges
Metcal System Single Output SSC Soldering Cart Technical Information
| Power Supply | |
| Ambient Operating Temperature: | 10 - 40C (50F - 104F) |
| Maximum Enclosure Temperature: | 55C (131F) |
| Input Line Voltage: | 100 - 240 VAC |
| Input Line Frequency: | 50/60 Hz grounded circuit |
| Power Consumption: | 65 Watts maximum |
| Output Power: | 60 Watts maximum |
| Output Frequency: | 450 KHz |
| Power Cord: | (3-wire) 183 cm 18/3 SJT |
| Dimensions (approx.) W x D x H: | 90mm (3.5) x 200mm (8) x 152.5mm (6) |
| Weight: | 2.3kg (5.05 lbs) |
| Surface Resistivity: | 105-109 Ohms |
| Certification / Marking: | cTUVus, CE |
| Handle and Workstand | |
| Tip-to-Ground Potential: | < 2 mV RMS |
| Tip-to-Ground Resistance: | < 2 ohms |
| Idle Temperature Repeatability: | +/- 1.1C (2F) in still air |
| Handle Cord Assembly Length: | 122cm - burn proof, ESD safe Connector 8-pin circular DIN |
| Workstand W x D x H: | 100mm x 200mm x 100mm (4" x 8" x 4") |
| Workstand Weight: | 0.69 kg (1.51 lbs) |
