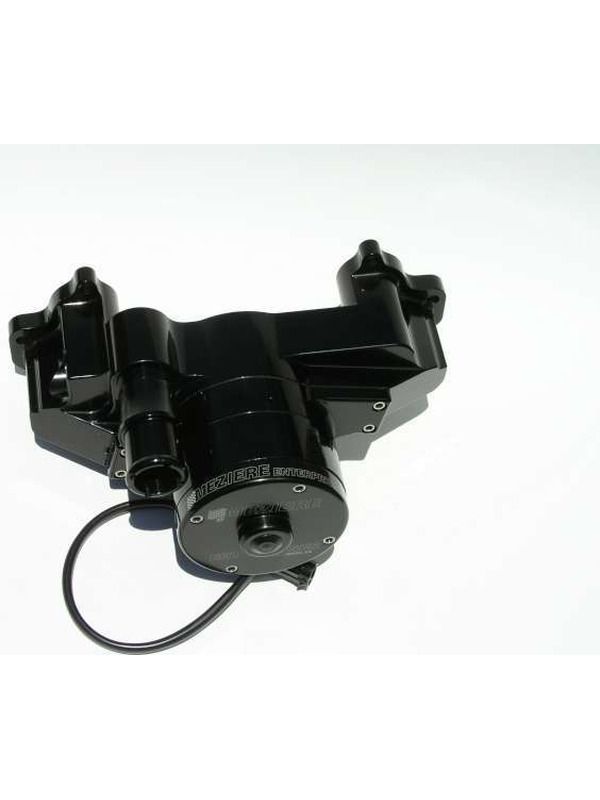

Meziere Electric Water Pump Ls1 Race 35 Gpm Black WP119S
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
American made with qualityfar superior to any otherperformance aftermarketcompany, we build our waterpumps with pride right herein the USA. Don't be misleadby inflated flow numbers andcompetitors' outlandishclaims. We say what we meanand mean what we say.
This water pump modelfeatures:
- Fits GMLS-1 through LS-8 engines
- Suitable for street ordrag strip use - 2500 hourlife expectancy
- Showquality black anodised finish
- Standard motorprovides 35 gallons perminute free flow rating
- All stainless steelhardware included
- Light weight. Completestandard GM LS-X unit weighsonly 7.0 pounds!
- Stainless steel largediameter main shaft with highperformance ceramic seal
- Pump will clear cam beltdrives and most blower drives
- 1" NPT inletadapters are available for#12AN, #16AN, #20AN,1-1/4", 1-1/2" or1-3/4" slip hose
- 1" NPT to 1 1/4" hoseoutlet adapter included
TechnicalSpecifications:
- Belt Drives: Standard LS-Xdesign will clear Jesel beltdrives and comparable beltdrive systems.
- Distributor Belt Drives:Spacers will be necessary toclear belt drive distributorsystems.
- FinishingThe System: This pump issupplied complete withgaskets and hardware butwithout the inlet fitting.The fitting needs to beordered according to the sizeof the lower radiator hose.
- Amperage draw: Undernormal use the pump will draw6-7 amps.
- OverallHeight Dimension: Thestandard pump is6.80" long from themounting surface to the tipof the pump.
- PumpWeight: This applicationweighs 7.0 lbs.
- 16volt systems: When purchasinga pump for a 16 volt systemwe recommend the 16 voltoptional motor on our pump.The 12 volt pump will workfor limited use applications.
AdditionalNotes:
The standard 35 GPMpump is suitablefor normallyaspirated engines up to650HP. Supercharged,turbocharged and highcompression, high horsepowerapplications should use the55GPM High Flow pump only.This model does not acceptheater or bypass hoses as astandard. These may be addedat the factory for anadditional cost. Please callfor details.
Accessories for GM LS-X:
Relay Wiring Kit upgradeWIK346
