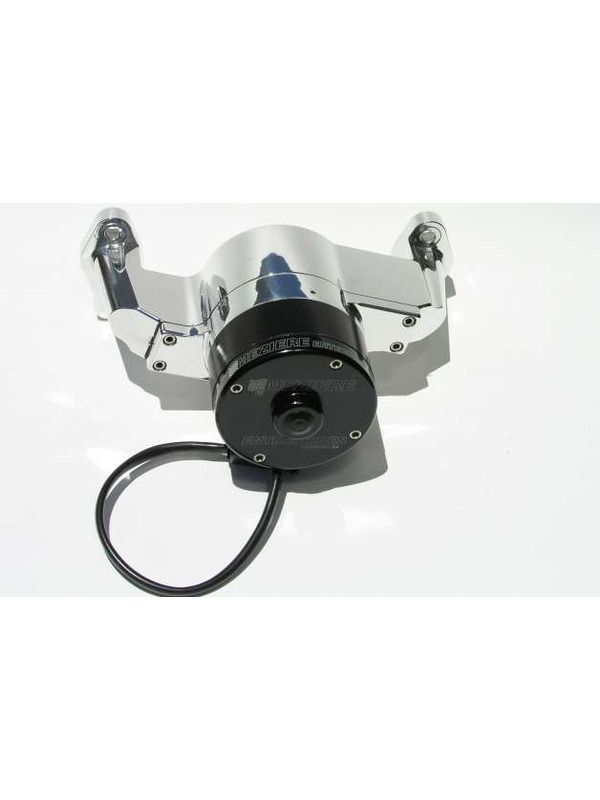

Meziere Electric Water Pump Sbc , 4.3 V6 35 Gpm Polished WP101U
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
American made with qualityfar superior to any otherperformance aftermarketcompany, we build our waterpumps with pride right herein the USA. Don't be misleadby inflated flow numbers andcompetitors' outlandishclaims. We say what we meanand mean what we say.
This water pump modelfeatures:
- Fits small block Chevrolet
- Suitable for streetor drag strip use - 2500 hourlife expectancy
- Showquality polished finish
- Standard motor provides35 gallons per minute freeflow rating
- Allstainless steel hardwareincluded
- Lightweight. Complete standardsmall block Chevy unit weighsonly 5-1/2 pounds!
- Stainless steel largediameter main shaft with highperformance ceramic seal
- Pump will clear cam beltdrives and most blower drives
- 1" NPTinlet adapters are availablefor #12AN, #16AN,1-1/4", 1-1/2" or 1-3/4" sliphose
Technical Specifications:
- BeltDrives: Standard SBC designwill clear Jesel belt drivesand comparable belt drivesystems.
- DistributorBelt Drives: Spacers will benecessary to clear belt drivedistributor systems.
- Finishing The System: Thispump is supplied completewith gaskets and hardware butwithout the inlet fitting.The fitting needs to beordered according to the sizeof the lower radiator hose.
- Amperage draw: Undernormal use the pump will draw6-7 amps.
- OverallHeight Dimension: Thestandard pump is 6.75" longfrom the mounting surface tothe tip of the pump.
- Pump Weight: This applicationweighs 5.5 lbs.
- 16volt systems: When purchasinga pump for a 16 volt systemwe recommend the 16 voltoptional motor on our pump.The 12 volt pump will workfor limited use applications.
AdditionalNotes:
The standard 35GPM pump is suitable fornormally aspirated enginesto 650HP. Supercharged,turbocharged and highcompression, high horsepowerapplications should use the55GPM High Flow pump only.This model does not acceptheater or bypass hoses as astandard.
Accessoriesfor Small Chevy:
WaterPump Spacers:
Thickness.9" WPS101
Thickness1.5" WPS101-1.50
RelayWiring Kit upgrade WIK346
