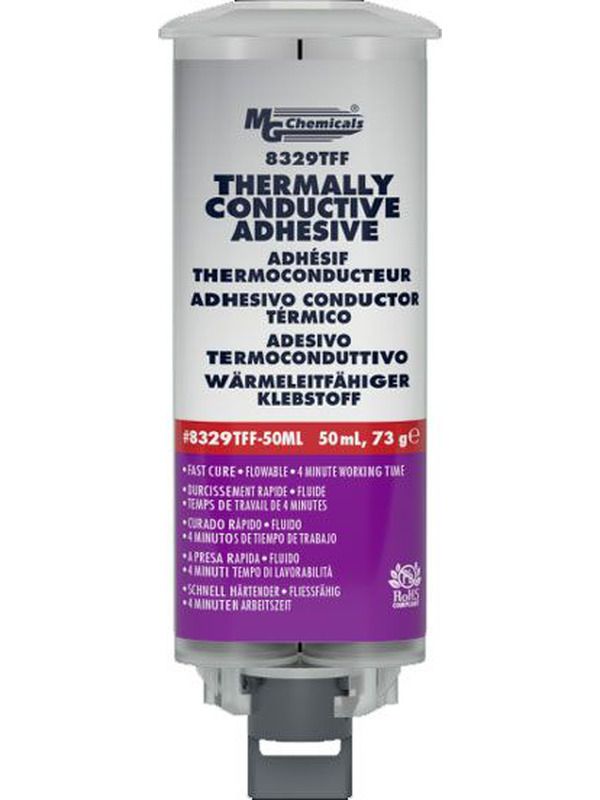

MG Chemicals Fast Cure Thermally Conductive Adhesive Flowable 50ml
MG Chemicals Fast Cure Thermally Conductive Adhesive Flowable 50ml
Overview
8329TFF is a thermally conductive, fast-cure two-part epoxy adhesive. It is off-white, smooth, thixotropic, and bonds well to a wide variety of substances. It is also flame retardant, and meets the UL 94V-0 standard. For a 1 mL quantity, a minimal service cure can be achieved in 15 minutes at room temperature, and a full cure in 4hours.
This product is used to bond heat sinks, LEDs and other heat-generating components in electronic assemblies. It is suitable for use with dual-syringes, mix-tips and automatic dispensing systems.
For a longer working life, use 8329TFM or 8329TFS.
Features and Benefits
- Thermal conductivity of 0.8 W/(mK)
- 1:1 mix ratio
- Working life: 4 minutes
- Set time: 15 minutes
- Cure time: 4hours at room temperature or 15 minutes at 65 C (149 F)
- Flame retardantmeets UL 94V-0 standard
- Provides strong electrical insulation
- Low CTE prior Tg
- High tensile and compressive strength
- Strong resistance to humidity, salt water, mild bases, and aliphatic hydrocarbons
- Shelf life: 3 years
- RoHS 3 compliant
Specifications
Catalog Number: 8329TFF-50ML
Sizes Available: 45ml (1.52 fl oz)
Format: Syringe
