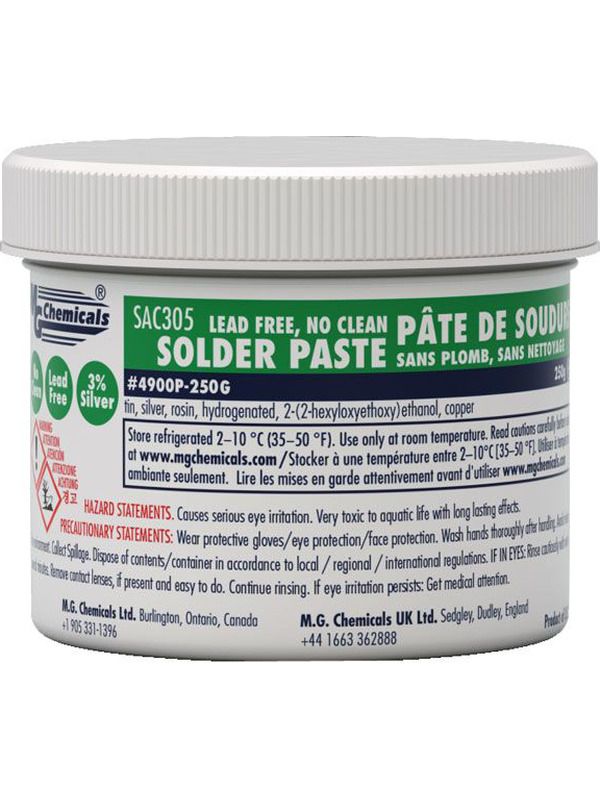

MG Chemicals SAC305 Lead Free No Clean Solder Paste, 250g
MG Chemicals SAC305 Lead Free No Clean Solder Paste, 250g
Overview
The 4900P No Clean Solder Paste is made from a blend of high-purity, non-recycled tin, silver, and copper metal powder mixed with a no clean flux. This lead-free and halogen-free solder paste is designed for extreme flux activity and enhanced printing characteristics needed for ultra-fine pitch applications. It provides excellent wetting on copper OSP-coatings. Wide reflow process windows combined with high thermal stability yield solder joints with smooth surfaces.
Features and Benefit
- Alloy exceeds J-STD-006C and meets ASTM B 32 purity requirements
- Flux meets J-STD-004B
- Repeatable and consistent print characteristics
- Long stencil and tack life to accommodate high speed printing
- Excellent wettability
- Suitable for air or nitrogen atmosphere
- Medium soft, non-cracking residues
- Dobb-Frank (DRC conflict free)
- REACH (compliant)
- RoHS (compliant)
Applications and Usages
The solder paste is designed to accommodate high speed printing. It can yield brick-like prints even when using an ultra-fine pitch stencils down to 0.3 mm.
Specifications
- Catalog Number: 4900P-250G
- Size: 250g (8.81 oz)
- Description: Jar
