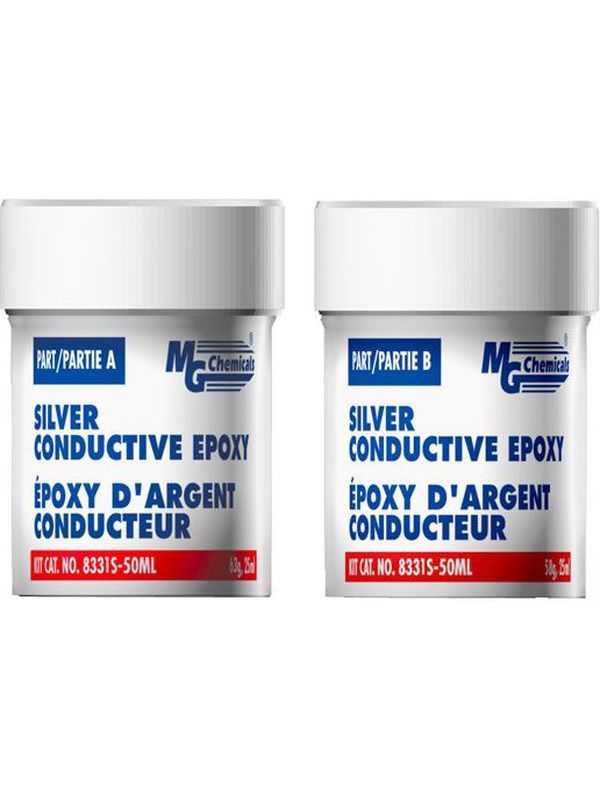

MG Chemicals Silver Epoxy Adhesive Slow Cure/High Conductivity 50ml (8331S50ML)
MG Chemicals Silver Conductive Epoxy Adhesive Slow Cure/High Conductivity, 50ml
Overview
8331S is an electrically conductive, silver-filled two-part epoxy adhesive with a long working life. It is smooth, non-sagging, thixotropic, and bonds well to a wide variety of substrates.
It can be used as a solder replacement for bonding heat-sensitive electronic components, or for making conductive connections where soldering is not an option, such as when bonding to glass, soft metals, or plastics.
8331S has been formulated to be economical. For a higher fill version that maximizes conductivity, use 8330S. For a shorter working life and room temperature cure, use 8331.
Feature
- Resistivity of 0.006cm
- Thermal conductivity of 1.3W/(mK)
- 1:1 mix ratio
- Working life: 4 hours
- Cure time: 2 hours at 65 C (149 F)
- High tensile strength
- Excellent compressive strength
- Strong resistance to humidity, salt water, mild bases, and aliphatic hydrocarbons
- Shelf life: 3 years at room temperature
- RoHS 3 compliant
MG Chemicals Silver Conductive Epoxy Adhesive Slow Cure/High Conductivity, 50ml Specifications
Catalog Number: 8331S-50ML
Size: 123g (4.34 oz)
Packaging: 2 Jar Kit
