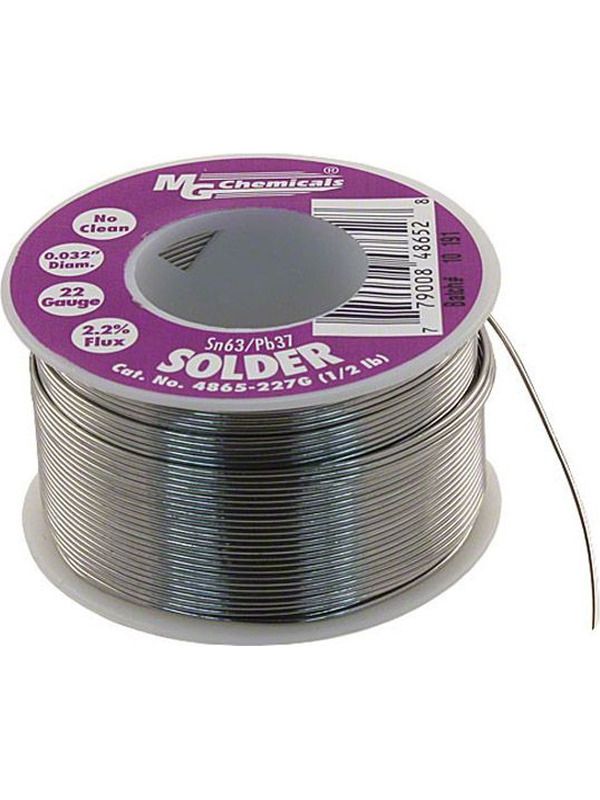

MG Chemicals Sn63/Pb37, No Clean , 0.81mm/0.032" Dia, 227g
MG Chemicals Sn63/Pb37, No Clean , 0.81mm/0.032"Dia, 227g
Overview
The 4860-4867 Sn63/Pb37 No Clean Solder Wire is an electronic grade solder wire. It uses the eutectic tin-to-lead alloy ratio, which is complemented with a no clean, synthetically refined, splatter-proof, resin flux core. The solder wires meet J-STD-004B, ASTM B 32, and exceeds J-STD-006C specifications. It is one of the easiest solders to work with because it offers a low-melting temperature with a sharp melting/solidification point, which results in robust and reliable joints that are highly resistant to whisker formation.
The leaded solders achieve a consistent solder and flux percentage through a state-of-the-art, extrusion, wire-drawing machine. This machine continually monitors the wire to prevent voids and ensure consistency, providing a top-grade solder wire.
Features and Benefits
- Eutectic alloy (liquidus = solidus temperature)
- Alloy exceeds J-STD-006C and meets ASTM B 32 purity requirements
- Flux meets J-STD-004B
- Spreads like rosin-activated flux
- Virtually non-splattering
- Non-corrosive residue
- Non-conductive residue
- Halide free
