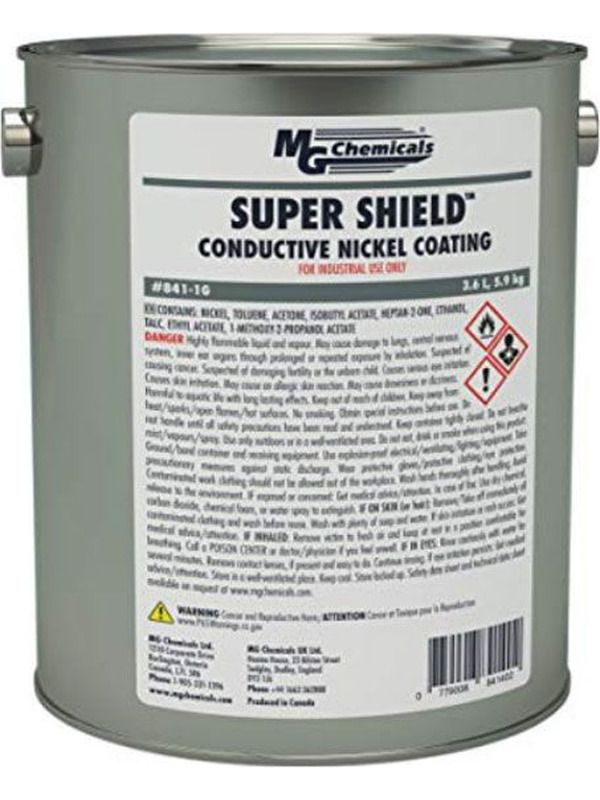

MG Chemicals Super Shield Nickel Conductive Coating, 3.6L (1 Gal) 841-1G

MG Chemicals Super Shield Nickel Conductive Coating, 3.6L (1 Gal)Overview

The 841 Super Shield Nickel Conductive Coating is a one-part durable acrylic lacquer pigmented with a highly conductive nickel flake. It utilizes a solvent based system with no heat cure necessary. The cured coating is smooth, hard, and abrasion resistant. It provides strong adhesion to plastics, excellent conductivity, and strong corrosion resistance, even in marine environments.

MG Chemicals Super Shield Nickel Conductive Coating, 3.6L (1 Gal)Application and Usages

The 841 is designed to provide a conductive coating to the interior of plastic electronic enclosures to suppress EMI/RFI emissions. It excels when corrosion resistance is a concern.

The 841 is commonly used by manufacturers of these devices:

• Sensors

• Controllers

• Receivers

• Test Equipment

• Scientific equipment

• Medical Equipment

• Communication devices

• Satellite dishes and radar systems

• Antennas

• Aerospace applications

• Electric vehicles

• Cable boxes

• Networking gear, firewalls

• Military equipment

• Cellphones, laptops, PDAs

• GPSs, navigation systems

• TVs, monitors, and displays

• Consumer electronics

• Electronic sporting equipment

• Audio equipment

• Electric guitars and other amplified instruments

• Drones and other RC vehicles

MG Chemicals Super Shield Nickel Conductive Coating, 3.6L (1 Gal)Features

• UL Recognized (File # E202609)

• Tested in compliance with IEEE Std. 299-1997

• Provides effective EMI/RFI shielding over a broad frequency range

• Volume resistivity of 0.0042 cm

• Smooth, durable, and abrasion resistant

• Can be applied by spray or brush

• Available in aerosol format

• Quick dry time, no heat cure required

• Mild solvent system, safe on polystyrenes

• Strong adhesion to acrylic, ABS, polycarbonate, and other injection molded plastics

• Excellent adhesion to wood, ceramics, copper, and aluminum

• Extremely corrosion resistant, suitable for harsh marine environments

MG Chemicals Super Shield Nickel Conductive Coating, 3.6L (1 Gal)Specifications

Catalog Number: 841-1G

Size: 3.6L (0.96 gal)

Description: Liquid
