Multicore LMP 362 5C 0.71mm 500g Roll 308
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

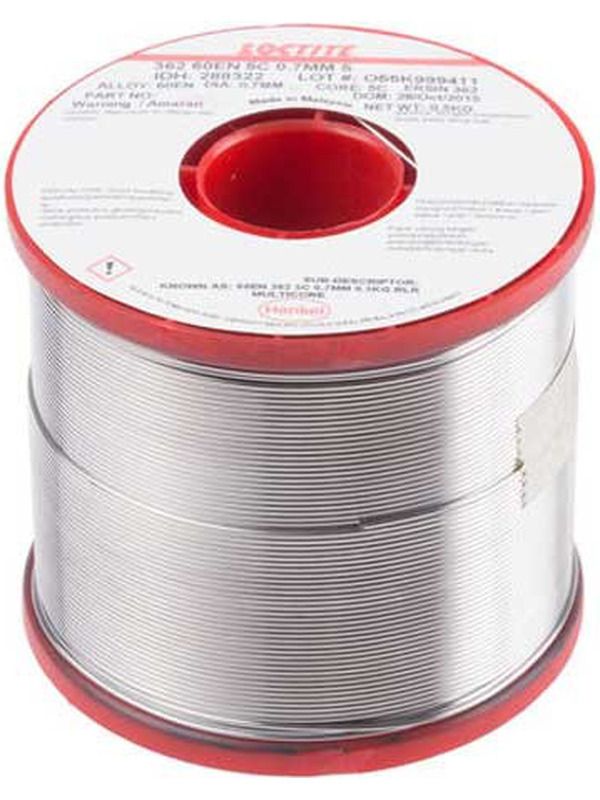

Multicore LMP 362 5C 0.71mm 500g Roll
Multicore LMP 362 5C Overview
Low Melting Point (LMP)
These fluxes contain, dissolved in the rosin, a small proportion of complex substances activators. The properties of the substances have been carefully chosen so that, on raising the flux to the soldering temperature,a small controlled quantity of a special reagent is liberated. This dissolves away the metal oxides and so promotes the flow of molten solder over the clean metal surface.Most of the reagent is either destroyed by combination with the metal oxide, or by the soldering heat. Any small quantity remaining in the flux is rendered innocuous by a re-combing with the activator, and so the flux residue is, like pure rosin, non-corrosive, hard, non-sticky and impervious to moisture.
Multicore LMP 362 5C Features
- Multicores of activated, non-corrosive "362" rosin based flux
- Minimal amber coloured (rosin) residues do not require cleaning
- 62% Tin (Sn), 36% Lead (Pb), 2% Silver (Ag) Alloy
- Silver loaded alloy to minimise silver leaching from component terminations
- 179C melting temperature (tip temperature approximately 320C
Multicore LMP 362 5C Resources
Please click the title to download)
Multicore LMP 362 5C Safety Data Sheet (SDS)
