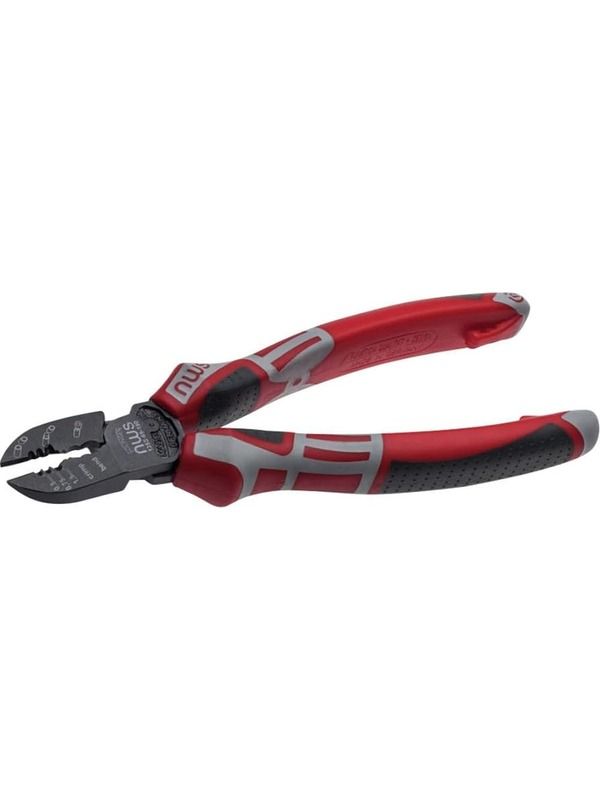

NWS Universal Side Cutter 190mm 135-69-190-SB
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
NWS Universal Side Cutter 190mm
OverviewWith stripping function for single and multi-stranded conductors with 0.5 mm and 1.5 mm conductor cross-section
0.5 mm for CAN bus cable as Data cable for control units
0,75 mm for power cables as Radio, horn, lights, etc.
1.5 mm for power cables with higher current consumption, for example, vehicle sockets, cigarette lighter, and various cable trailers
4 Functions: cutting - stripping - crimping - bending
For processing non-insulated crimp sleeves and plug connectors
For processing insulated crimp sleeves and plug connectors
Precision cutting edge for the finest wires
Cutting edges inductively hardened
Power transmission with optimum leverage for easy and effortless work
Handles with ergonomically shaped SoftGripp multi-component sleeves
SoftGripp handles with SystemSocket for holding optionally available accessories, e.g. the easily attached SystemClip for fall protection
Made of special tool steel, forged, oil-hardened
| Length - mm | 190 |
| Length - in | 7 1/2 |
| Cutting edge shape | |
| Soft wire (220 N/mm) copper, aluminium, plastic - cutting capacity - mm | 2 |
| Medium hard wire (750 N / mm) nail, wire nail - cutting capacity - mm | 1 |
| Cable - Al + Cu multi-wired conductor single and stranded conductor - cutting capacity - mm | 4 |
| Stripping capacities - mm | 0,5 + 0,75 + 1,5 |
| Stripping capacities - AWG | 20 + 18 + 15 |
| Weight - g | 260 |
| Length including self-service packaging - mm | 255 |
| Width including self-service packaging - mm | 65 |
| Height including self-service packaging - mm | 25 |
| Weight self-service packaging - g | 15 |
| Barcode | 40 03758 63562 9 |
