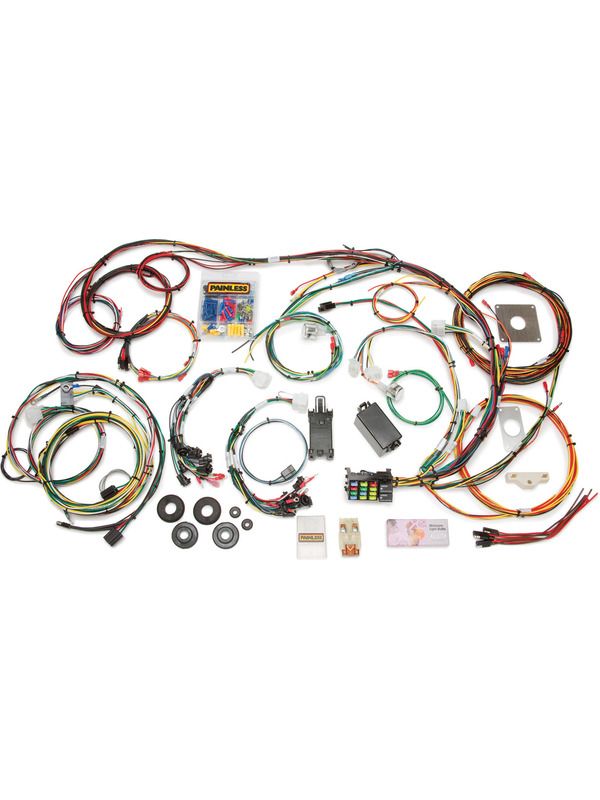

Painless Wiring Painless Mustang 65-66 Wiring Harness 22 Circuit 20120
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
This 22 circuit direct fit1965-1966 Mustang harness hasmany of the factory connectorsalready installed on theharness out of the box. Thisharness uses our uniquecovered micro-fuse block. Alsofeatured is an auxiliarycircuit with 20 amp relay foraccessories such as foglights, or an electric fuelpump. Each wire is customprinted with the circuitidentification as well asusing Ford color codes foreasyinstallation.
Number of Circuits:22 Circuits - 12 Fuses w/ HornRelay, Accessory Relay andMaxi Fuse
HarnessLength: FactoryFitment
FuseType: Mini Blade& Maxi Fuse
FirewallPassthrough:Grommet
ColorCode Based: FactoryFord
CircuitDesignations: Printedon Wires
ConnectorsIncluded:Blowermotor, wipers, ignition,headlight switches, voltageregulator, turn signals andflashers, lighter, brakeswitch, dimmer switch, brakewarning light and headlightbulbs
Thisharness includes circuitsfor:
- A/C& Heat
- Accessory /CigaretteLighter
- AccessoryRelay
- BackupLights
- BrakeLights
- Charging
- Courtesy and DomeLights
- ElectricChoke
- EmergencyFlashers
- Fan RelayActivation Power
- Fused PowerSource
- Glove BoxLight
- Headlights
- Horn(Relay)
- IgnitionCoil
- Instrument PanelLighting andGauges*
- ParkLights
- Radio/Clock(Constant andSwitched)
- Starting
- Tail Lights and License PlateLight
- TurnSignals
- Wipers andWasherPump
*Including WiresFor:
- Ammeter
- FuelGauge
- OilGauge
- Tachometer
- TemperatureGauge
- Voltmeter
NOTE:THIS WILL NOT FIT1964 1/2 MUSTANGS
