Power-Sonic PowerPure Uninterruptible Power Supply UPS RT3 3000VA
Power-Sonic PowerPure Uninterruptible Power Supply UPS RT1 1000VA
Power-Sonic PowerPure Uninterruptible Power Supply UPS RT2 2000VA UPSPPRT2
MPN: UPSPPRT2
|
RPI: 3128948
or 4 interest-free payments of
$25,000.00
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time(Prior to Dispatch)
Return Policy
30 Days Return
Type in your postcode or suburb to get an estimate on postage cost.
Estimate
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
MPN
UPSPPRT2
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Width (mm)
440
Height (mm)
86.5
Length (mm)
460
Net Weight (kg)
19.1
Nominal Voltage
200/208/220/230/240VAC
Operating Frequency Range
40-70Hz
Power Factor
0.99@100% load (Nominal Input Voltage)
Generator Input
Support
Output Voltage
200/208/220/230/240Vac
Power Factor
1.0
Voltage Regulation
+-1%
Frequency (Line Mode Synchronized Range)
47-53Hz or 57-63Hz
Frequency (Bat. Mode)
(50/60+-0.1)Hz
Crest Factor
3:1
Harmonic Distortion (THDv)
<=2% THD with linear load; <=4% THD with non linear load
Waveform
Pure Sinewave
Transfer Time (AC Mode <-> Batt. Mode)
Zero
Transfer Time (Inverter <-> Bypass)
4ms (Typical)
Efficiency (Line Mode)
0.92
Efficiency (Batt. Mode)
0.88
Battery Type
12V9AH
Number of Battery
4
Battery Backup Time
Full load 3~5 minutes; estimated remaining time displayed on the LCD
Typical Recharge Time (Standard Model)
4 hours recover to 90% capacity (Typical)
Charging Voltage
54.7 VDC +-1%
Charge Current
2A (12A max, can be setting by LCD)
Short Circuit
Hold Whole System
Overheat
Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately
Low Battery Voltage
Alarm and Switch off
EPO (optional)
Shut down UPS immediately
Audible & Visual Alarms
Line Failure, Battery Low, Overload, System Fault
Comunication Interface
USB (or RS232), SNMPcard (optional), Relay card (optional)
Operating Temperature
0 C~40 C
Storage Temperature
-25 C~55 C
Humidity Range
20-90 % RH @ 0- 40 C (non-condensing)
Altitude
< 1500m
Noise Level
Less than 50dBA at 1 Meter
Safety Standards
IEC/EN62040-1,IEC/EN60950-1
EMC
IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-9

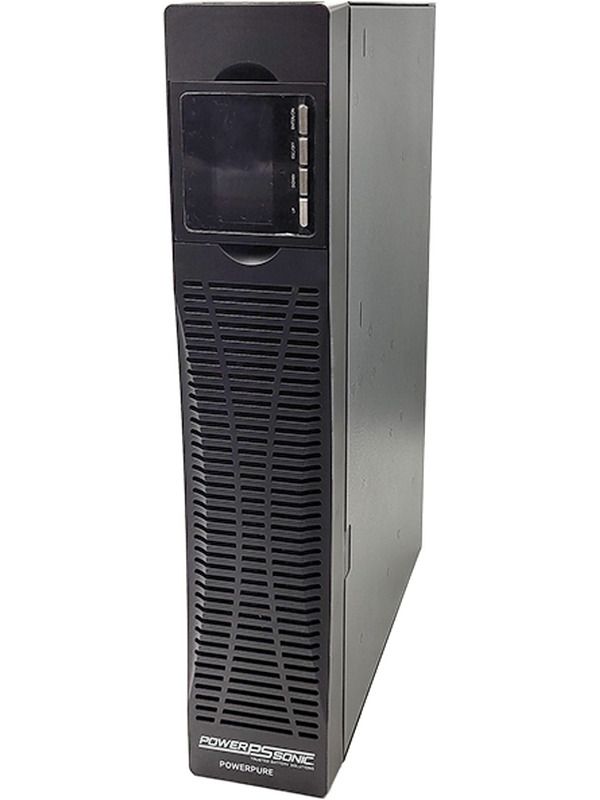

Power-Sonic PowerPure Uninterruptible Power Supply UPS RT2 2000VA The PowerPure RT series is an online double conversion UPS (uninterruptible power supply) providing reliable sine-wave power for your critical equipment. It supports computers, servers, networks, VoIP and telecommunications. With a 1.0 output power factor the UPS provides 30% additional power at the output when compared to standard 0.7 power factor UPS systems. This means the PowerPure RT can support more critical equipment.
The PowerPure RT series features optional external battery packs that can be connected for longer backup time and added flexibility for future demand, this make it an ideal choice for servers with high power density and input power factor.
True Online Double Conversion
LCD Display with Multifunction Settings
Output Power Factor 1.0
Wide Input Voltage Range
Power Shedding Function
Cold Start Function
Intelligent Battery Management
Supports Generator Input
Powerful Charger for More Efficient Battery Backup
Eco Operation Mode for Energy Saving
Hot-Swappable Battery
Communication Software Supports Windows etc.
Matching Battery Packs
Operating Voltage Range
160Vac+-5% @100%-80% load;
140Vac+-5% @80%-70% load;
120Vac+-5% @70%-60% load;
110Vac+-5% @60%-0% load; (Ambient Temp.
