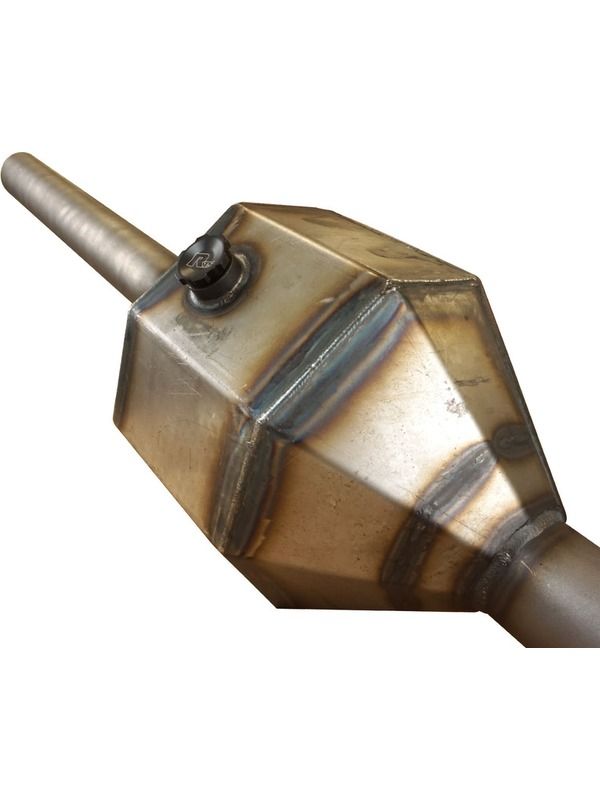

RTS Fabricated Rear Axle Housing For Ford 9 in. Diff Mild Steel
RTS fabricated rear axle housings For Ford 9" are CAD designed to be as light as possible and laser cut for a great surface finish. Their triangulated design provides the structural integrity required for high performance racing applications. Constructed from mild steel, the outer shell is 3 mm thick and the faceplate is 6 mm thick. Configured for 9" diff gears, these housings come in a full-bodied car style, with cut to length 3" OD (0.18" wall) axle tubes which suit forged housing ends. Overall width of 60" and the faceplate accepts 3/8" studs and has a drain plug included.
Features- Triangulated ridge design
- 1/4" fabricated steel center section
- 3" axle tubes (0.180" wall thickness)
- 3/8" thick mounting flanges
- Tube locations slotted & welded
- Clearance provided for cases with HD main caps
- Housings will accept 9", 9 1/2" gear sets
- Comes with center studs, billet fill plug, drain, and vent
