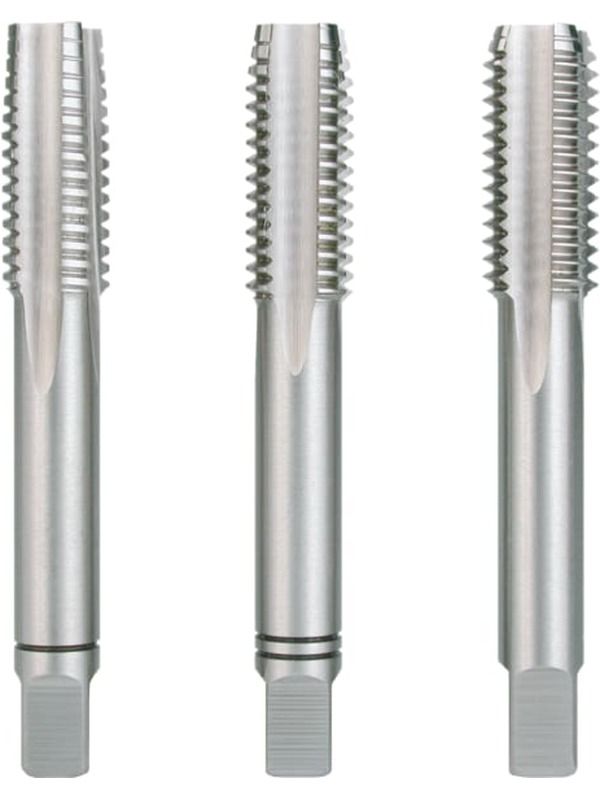

Ruko 3 Pc Hand Tap M DIN 352 HSS M 2
OverviewThe hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Taper tap: 6-8-thread chamfer / Second tap: 4-5-thread chamfer / Final tap: 2-3-thread chamfer
SpecificationsLength: 36.0 mm
Steel < 800 N/mm
Aluminium
Brass
Plastics
Shaft: Square shank
Coating: uncoated
Material: HSS
Cutting Direction: right hand cutting
DIN: 352
Core Hole Diameter: 1.6 mm
Nominal Thread Size: M 2
Thread Pitch: 0.40 mm
Spiral Length: 8.0 mm
Tolerance: ISO 2 6H
Flank Angle: 60
