Ruko Hand Tap M DIN 352 HSS M 16 Final Tap 230160-3
MPN: 230160-3
|
RPI: 3265941
$44.43
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here

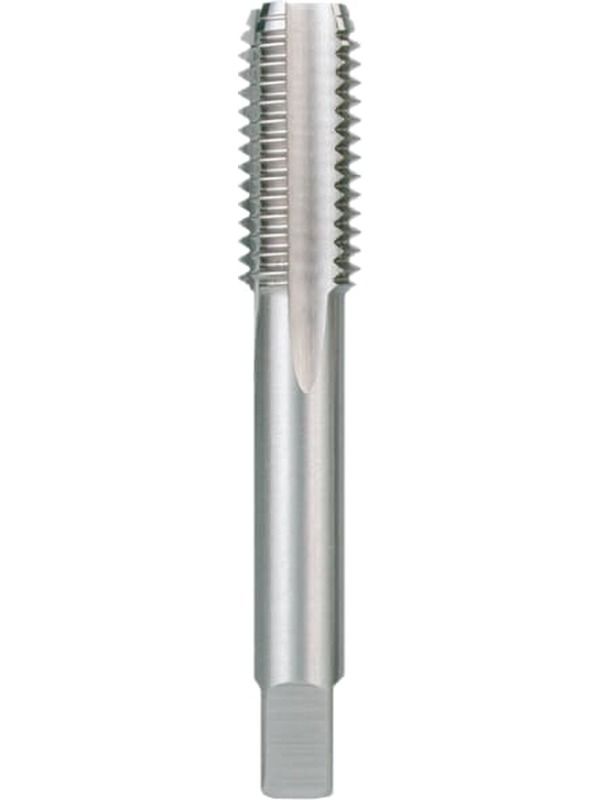

Ruko Hand Tap M DIN 352 HSS M 16 Final Tap
OverviewThe hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Final tap: 2-3-thread chamfer
SpecificationsLength: 80.0 mm
Steel < 800 N/mm
Aluminium
Brass
Plastics
Shaft: Square shank
Coating: uncoated
Material: HSS
Cutting Direction: right hand cutting
DIN: 352
Core Hole Diameter: 14.0 mm
Nominal Thread Size: M 16
Thread Pitch: 2.00 mm
Spiral Length: 32.0 mm
Tolerance: ISO 2 6H
Flank Angle: 60
