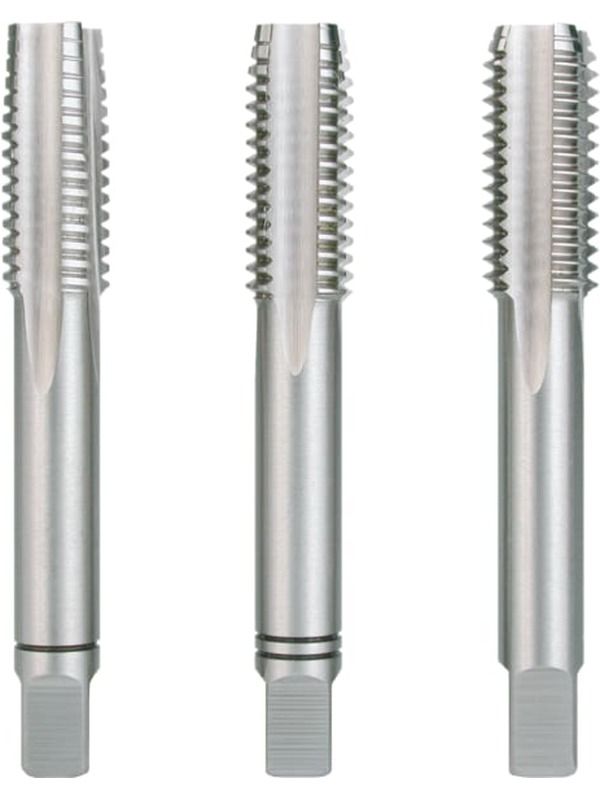

Ruko Hand Tap M DIN 352 HSSE-Co 5 M 8
OverviewThe hand tap consists of 5% cobalt alloyed heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 900 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in three operation
Taper tap: 6-8-thread chamfer / Second tap: 4-5-thread chamfer / Final tap: 2-3-thread chamfer
SpecificationsLength: 56.0 mm
Stainless steel
Aluminium
Brass
Bronze
Plastics
Steel < 800 N/mm
Steel < 1000 N/mm
Shaft: Square shank
Coating: uncoated
Material: HSSE-Co 5
Cutting Direction: right hand cutting
DIN: 352
Core Hole Diameter: 6.8 mm
Nominal Thread Size: M 8
Thread Pitch: 1.25 mm
Spiral Length: 18.0 mm
Tolerance: ISO 2 6H
Flank Angle: 60
