Ruko Hand Tap M DIN 352 HSSE-Co 5 M6 Final Tap 230.06
MPN: 230.06
|
RPI: 3265915
$25.39
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here

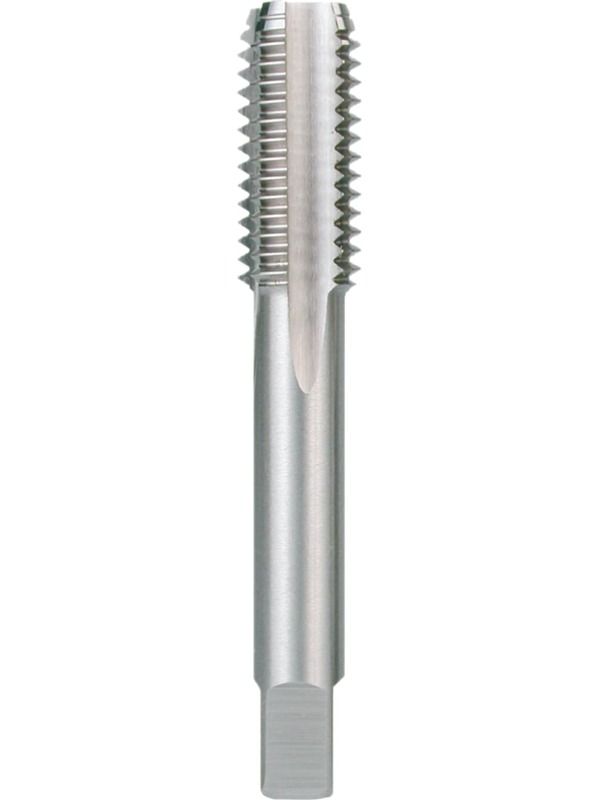

Ruko Hand Tap M DIN 352 HSSE-Co 5 M6 Final Tap
OverviewThe hand tap consists of 5% cobalt alloyed heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 900 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in three operation
Final tap: 2-3-thread chamfer
Application| Main application | Stainless steel |
| Aluminium | |
| Brass | |
| Bronze | |
| Plastics | |
| Steel < 800 N/mm | |
| Steel < 1000 N/mm | |
| Other application | Cast iron |
Length: 56.0 mm
Shaft: Square shank
Coating: uncoated
Material: HSSE-Co 5
Cutting Direction: right hand cutting
DIN: 352
Core Hole Diameter: 5.0 mm
Nominal Thread Size: M 6
Thread Pitch: 1.00 mm
Spiral Length: 15.0 mm
Tolerance: ISO 2 6H
Flank Angle: 60
