Ruko Hand Taps G DIN 5157 HSS G 1/8in
Ruko Hand Taps MF DIN 2181 HSS MF 24 x 2mm
Ruko Hand Taps G DIN 5157 HSS G 1/4in 236014
MPN: 236014
|
RPI: 3266005
or 4 interest-free payments of
$19.78
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Estimate
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
4007140025043
MPN
236014
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Coating
uncoated
Core hole diameter
11.8mm
Cutting Direction
Right hand cutting
DIN
5157
Flank Angle
55 degrees
Length
70.0mm
Material
HSS
Nominal thread size G
G 1/4in
Nominal thread size Rp
Rp 1/4in
Shaft
Square shank
Spiral length
20.0mm
Tolerance
ISO 2 6H

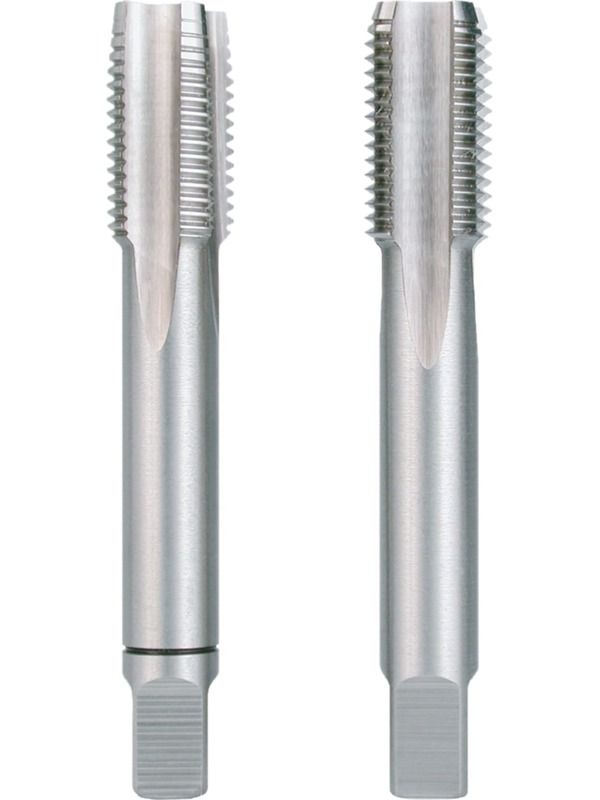

Ruko Hand Taps G DIN 5157 HSS G 1/4in Overview
The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Taper tap: 5-6-thread chamfer / Final tap: 2-3-thread chamfer
Application
Main Application: Aluminium, Brass, Plastics, Steel < 800 N/mm
Other Application: Bronze, Cast Iron
Specifications
Article number: 236014
Nominal thread size G: G 1/4"
Nominal thread size Rp: Rp 1/4"
Net weight: 0.114 kg
Length: 70.0 mm
Spiral length: 20.0 mm
Core hole diameter: 11.8 mm
Coating: uncoated
Shaft: Square shank
Cutting Direction: Right hand cutting
Material: HSS
Tolerance: ISO 2 6H
