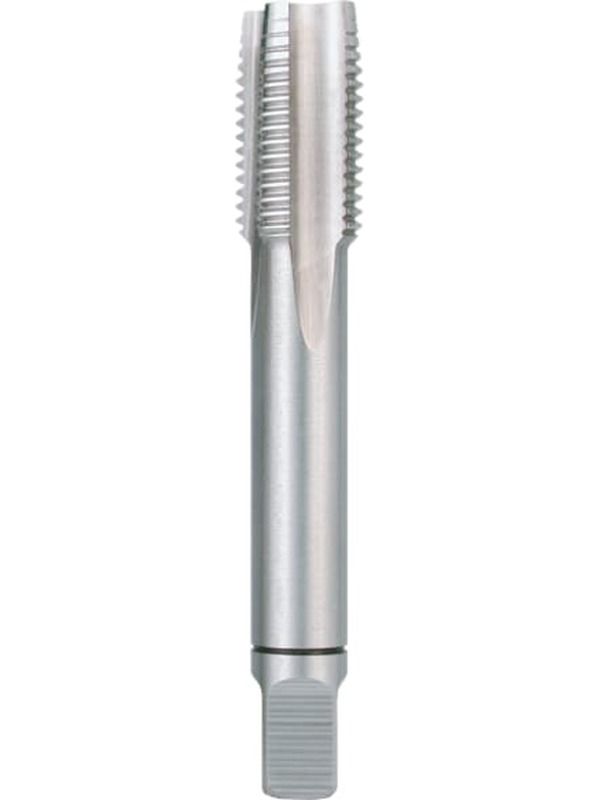

Ruko Hand Taps MF DIN 2181 HSS MF 20 x 1.5mm Taper Tap
OverviewThe hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Taper tap: 5-6-thread chamfer
SpecificationsLength: 80.0 mm
Aluminium
Brass
Plastics
Steel < 800 N/mm
Shaft: Square shank
Coating: uncoated
Material: HSS
Cutting Direction: right hand cutting
DIN: 2181
Core Hole Diameter: 18.5 mm
Thread Pitch: 1.50 mm
Spiral Length: 22.0 mm
Tolerance: ISO 2 6H
Flank Angle: 60
