Ruko Hand Taps MF DIN 2181 HSS MF 22 x 1.5mm 2 Pc 235220
MPN: 235220
|
RPI: 3266002
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here

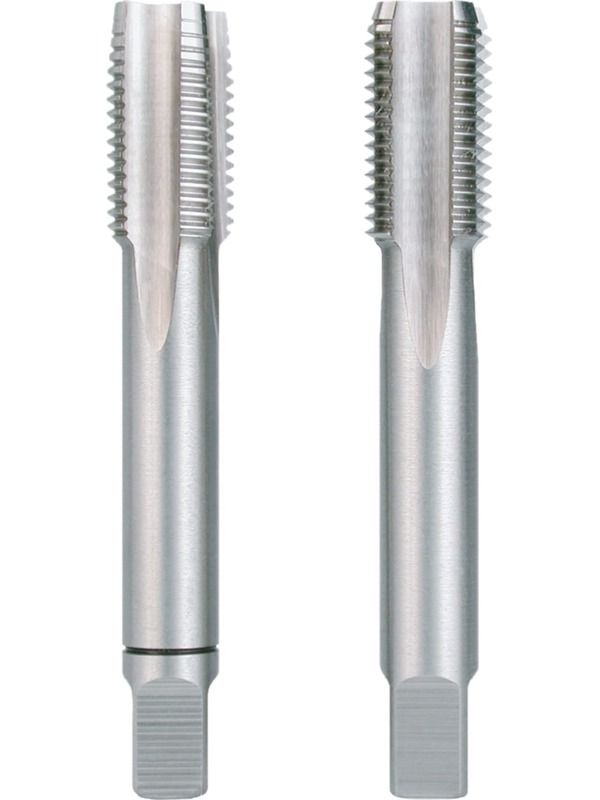

Ruko Hand Taps MF DIN 2181 HSS MF 22 x 1.5mm 2 Pc
OverviewThe hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Taper tap: 5-6-thread chamfer / Final tap: 2-3-thread chamfer
Article number: 235220
Nominal thread size MF: MF 22
Net weight: 0.297 kg
Thread pitch: 1,50 mm
Length: 80.0 mm
Spiral length: 22.0 mm
Core hole diameter: 20.5 mm
Aluminium
Brass
Plastics
Steel < 800 N/mm
Bronze
Cast Iron
Specifications| Coating | uncoated |
| Shaft | Square shank |
| Cutting direction | right hand cutting |
| Material | HSS |
| Tolerance | ISO 2 6H |
| DIN | 2181 |
| Flank angle | 60 |
