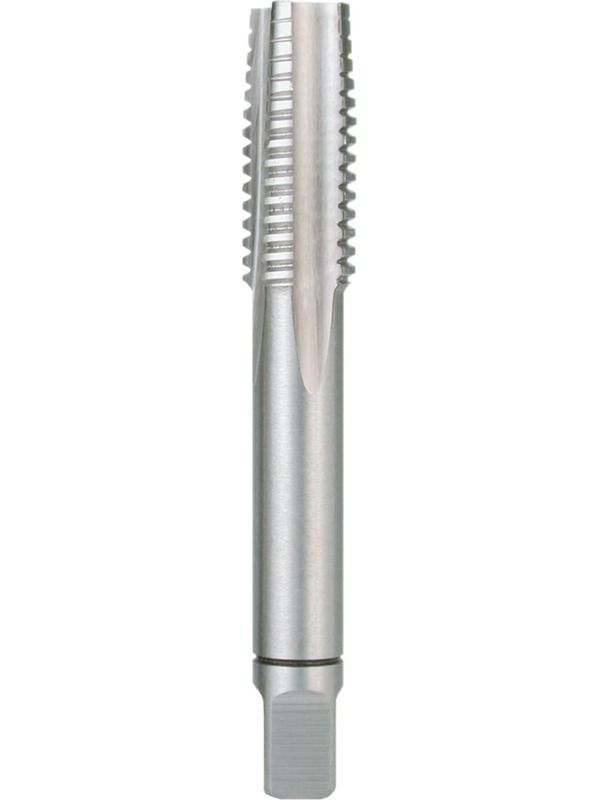

Ruko Hand Taps UNF DIN 2181 HSS 7/16in Taper Tap
OverviewThe hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Taper tap: 5-6-thread chamfer
SpecificationsLength: 63.0 mm
Shaft: Square shank
Coating: uncoated
Material: HSS
Cutting Direction: right hand cutting
DIN: 2181
Core Hole Diameter: 9.9 mm
Spiral Length: 22.0 mm
Tolerance: 2B
Flank Angle: 60
