Ruko Machine Tap M DIN 371 HSS with Reinforced Shank Type B M 4 232040
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

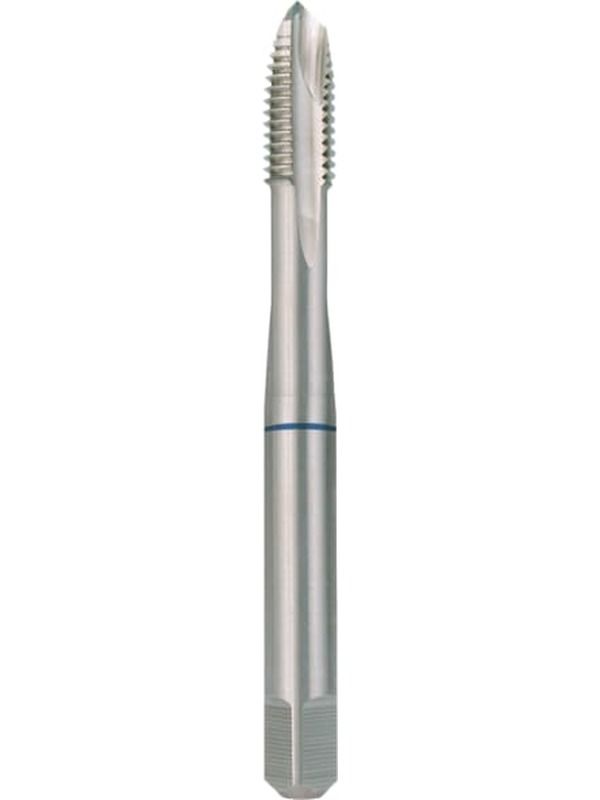

Ruko Machine Tap M DIN 371 HSS with Reinforced Shank Type B M 4
OverviewThe machine tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed steels up to a strength of 800 N/mm, malleable.The thread is cut in one operation. High speed tool steel, best known as 'high speed steel', refers to a group of alloyed tool steels with up to 2,06% carbon content and up to 30% proportion of alloying elements such as tungsten, molybdenum, vanadium, cobalt, nickel and titanium. HSS materials are characterised by great hardness, wear resistance and heat resistance up to 600 C. The HSS tools are less sensitive to shocks and vibrations, which sometimes quickly lead to breaks in the harder cutting materials.
Machine taps with reinforced shank for through threads
SpecificationsLength: 63.0 mm
ApplicationBrass
Steel < 800 N/mm
Shaft: Square shank
Material: HSS
Coating: uncoated
Cutting Direction: right hand cutting
DIN: 371
Core Hole Diameter: 3.30mm
Normal Thread Size: M 4
Thread Pitch: 0.70 mm
Spiral Length: 13.0 mm
