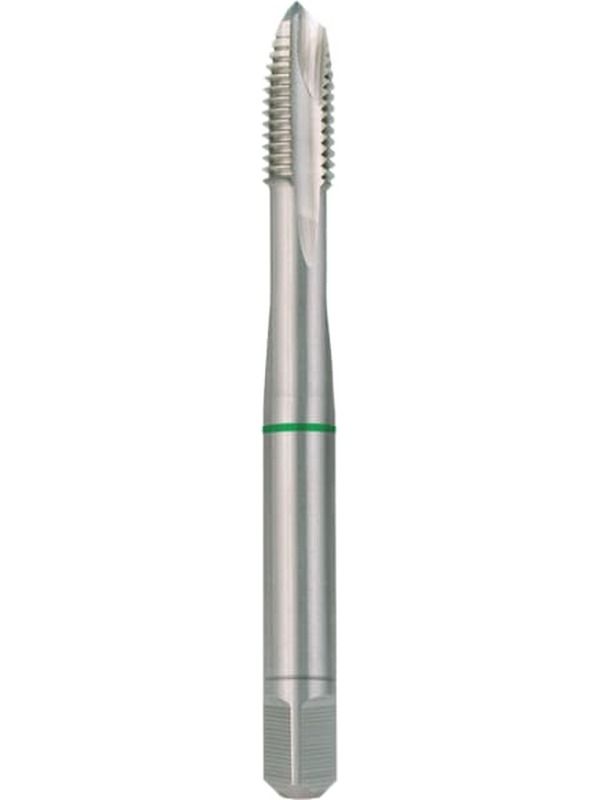

Ruko Machine Tap M DIN 371 HSSE-Co 5 with Reinforced Shank M10
OverviewThe machine tap consists of cobalt alloyed heavy-duty high-speed steel. Its high heat resistance means a longer tool life. For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 1000 N/mm, malleable cast iron and non-ferrous metals. The thread is cut in one operation. Like high speed steel with cobalt alloy. This heat-resistant material is used for processing materials with high strength and in long cutting channels with correspondingly strong heating. The cobalt content of 5% provides a higher heat resistance and higher stressing capacity.
Machine taps with reinforced shank for through threads.
SpecificationsLength: 100.0 mm
ApplicationMain Application:
Stainless steel
Brass
Steel < 800 N/mm
Steel < 1000 N/mm
Other Application:
Aluminium
Bronze
Plastics
Cast Iron
Normal Thread Size: M 10
Shaft: Square shank
Material: HSSE-Co 5
Coating: uncoated
Cutting Direction: right hand cutting
DIN: 371
Core Hole Diameter: 8.50mm
Thread Pitch: 1.50 mm
Spiral Length: 24.0 mm
Length: 100.0 mm
Net Weight: 0.05kg
