Ruko Step Drill HSS Fractional Sizes Spiral Fluted w/ Split Point No. 1 101701
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

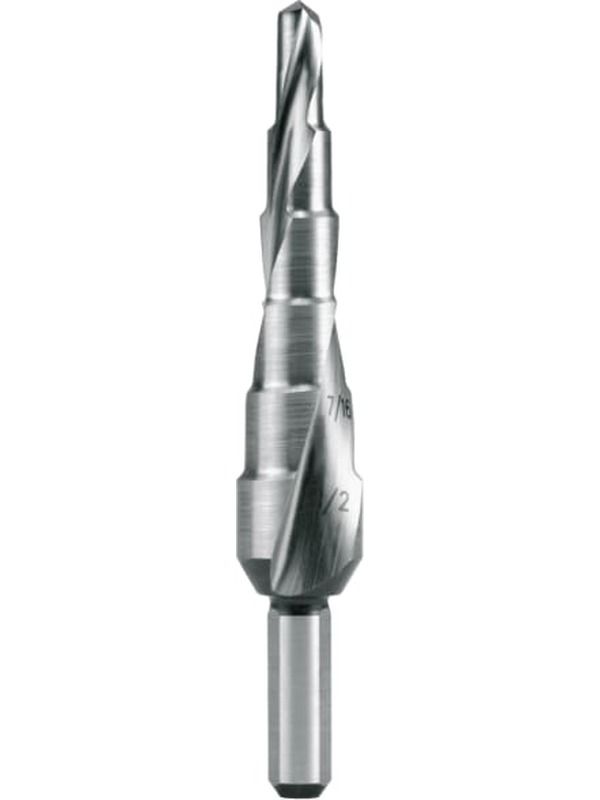

Ruko Step Drill HSS Fractional Sizes Spiral Fluted w/ Split Point No. 1
OverviewThe CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.
ApplicationSteel 900 N/mm
Aluminium
Brass
Plastics
SpecificationsMaterial: HSS
Shaft: 3-way clamping surface
Coating: uncoated
Shaft Diameter: 1/4 inch
Size: 1
Drilling Range: 1/4 - 1/2 inch
Tolerance: work's specification
Point Angle: 118
Cutting Direction: right hand cutting
Number of Cutting Edges: 2
Number of Steps: 6
Step Angle: 90
Length: 3 1/8 inch
Size no. 1 Drilling range: 3/16 - 1/4 - 5/16 - 3/8 - 7/16 - 1/2"
