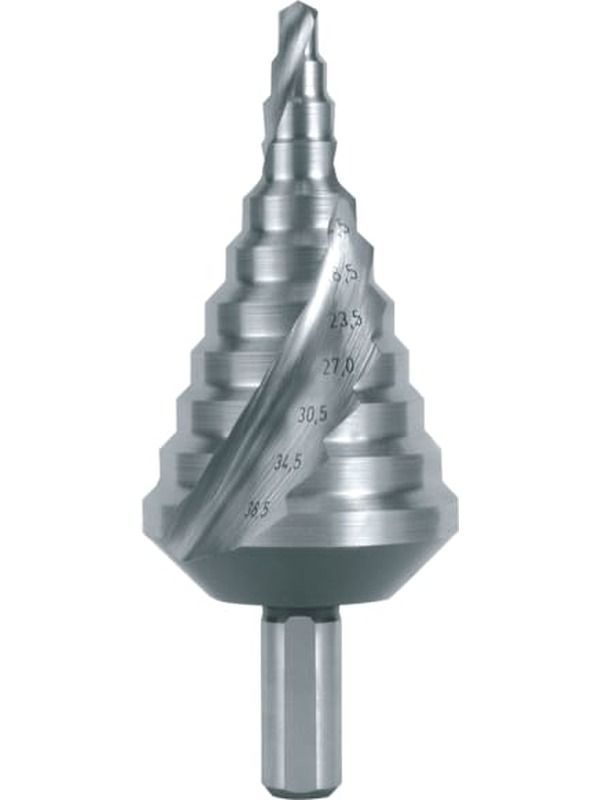

Ruko Step Drill HSS Spiral Fluted w/Split Point For Metric Cable No. 16 101091

Ruko Step Drill HSS Spiral Fluted w/Split Point For Metric Cable No. 16

The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.

Steel 900 N/mm

Aluminium

Brass

Plastics

Material: HSS

Shaft: 3-way clamping surface

Coating: uncoated

Shaft Diameter: 10.00 mm

Size: 16

Drilling Range: 5.3 - 38.5 mm

Tolerance: work's specification

Point Angle: 118

Cutting Direction: right hand cutting

Number of Cutting Edges: 2

Number of Steps: 11

Step Angle: 90

Length: 96.0 mm

Size no. 16 Drilling range: 5,3 / 7,0 / 9,0 / 10,5 / 14,5 / 18,5 / 23,5 / 27,0 / 30,5 / 34,5 / 38,5 mm
