Ruko Step Drill HSS Spiral Fluted with Split Point Short Design No. 0/9 101061

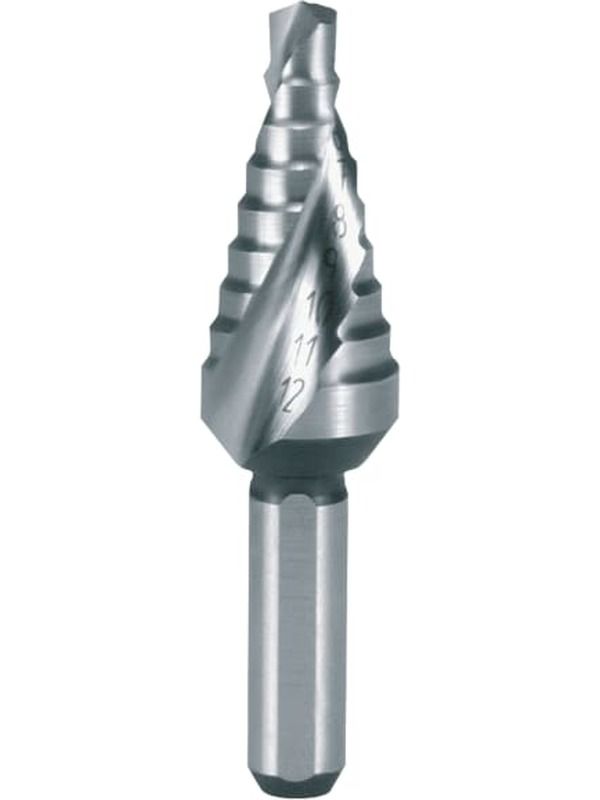

Ruko Step Drill HSS Spiral Fluted with Split Point Short Design No. 0/9

The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.

Steel 900 N/mm

Aluminium

Brass

Plastics

Material: HSS

Shaft: 3-way clamping surface

Coating: uncoated

Shaft Diameter: 6.00 mm

Size: 0/9

Drilling Range: 4.0 - 12.0 mm

Tolerance: work's specification

Point Angle: 118

Cutting Direction: right hand cutting

Number of Cutting Edges: 2

Number of Steps: 9

Step Angle: 90

Length: 48.0 mm

Size no. 0/9 k Drilling range: 4,0 / 5,0 / 6,0 / 7,0 / 8,0 / 9,0 / 10,0 / 11,0 / 12,0 mm
