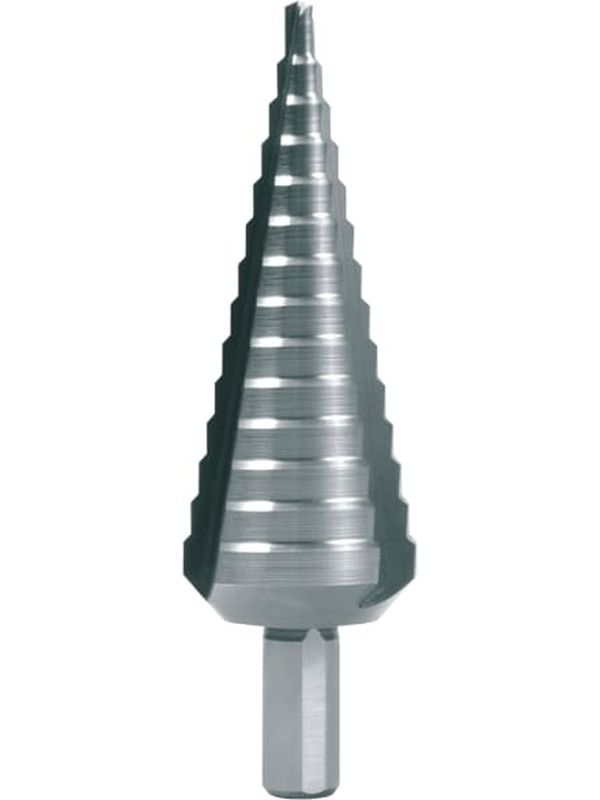

Ruko Step Drill HSS with 3 Cutting Edges No. 2 101352

Ruko Step Drill HSS with 3 Cutting Edges No. 2

The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.

Steel 900 N/mm

Aluminium

Brass

Plastics

Material: HSS

Shaft: 3-way clamping surface

Coating: uncoated

Shaft Diameter: 10.00 mm

Size: 2

Drilling Range: 4.0 - 30.0 mm

Tolerance: work's specification

Point Angle: 118

Cutting Direction: right hand cutting

Number of Cutting Edges: 3

Number of Steps: 14

Step Angle: 90

Length: 100.0 mm

Size no. 2 Drilling range: 4,0 / 6,0 / 8,0 / 10,0 / 12,0 / 14,0 / 16,0 / 18,0 / 20,0 / 22,0 / 24,0 / 26,0 / 28,0 / 30,0 mm
