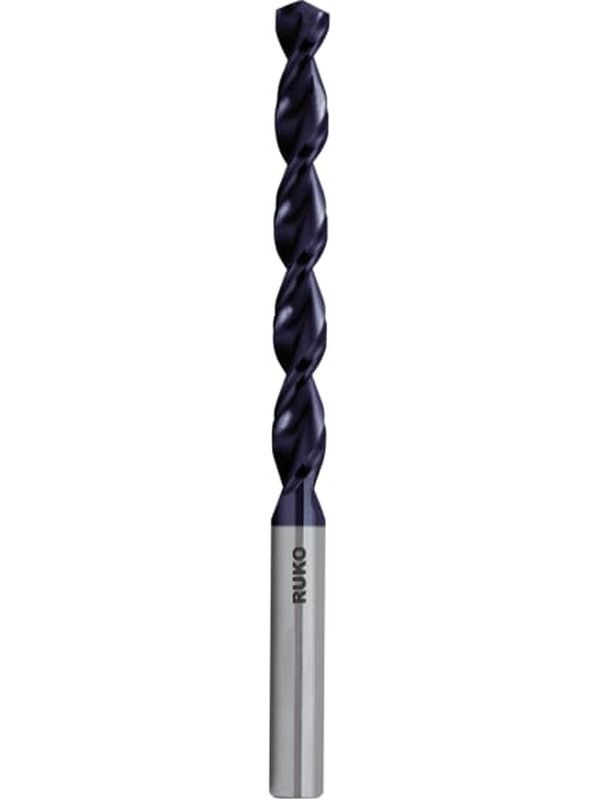

Ruko Twist Drill DIN 338 TL 3000 HSS-G TiAlN Diameter 5.0mm 258050F

Ruko Twist Drill DIN 338 TL 3000 HSS-G TiAlN Diameter 5.0mm

Very stable multi-range drill with outstanding thermal resistance, reinforced drill core and a parabolic chip groove for optimized chip removal. Ideal for drilling into materials with medium and long chip lengths. Due to its thick core and special chip groove with a rounded rear edge, this drill is ideally suited for heavy-duty applications. It covers a wide range for types N, H and W.
The titanium aluminium nitride coating offers high heat and oxidation resistance. Suitable for drilling hard materials without lubrication. Max. application temperature 700 C.

Diameter 5.0 mm Total length 86.0 mm Flute length 52.0 mm

Steel 900 N/mm

Steel 1100 N/mm

Stainless steel

Aluminium

Brass

Bronze

Plastics

Diameter: 5.0 mm

Length: 86.0 mm

Spiral Length: 52.0 mm

Drilling Depth: 5 x diameter

Shaft: cylindrical

Material: HSS

Coating: TiAlN coating

DIN: 338

Type: TL 3000

Tolerance: h8

Cutting Direction: right hand cutting

Tip Grinding: Shape C: Split point

Groove Profile: wide with rounded rear edges

Core: thick

Spiral Angle: 40

Point Angle: 130

Net Weight: 0.009 kg
