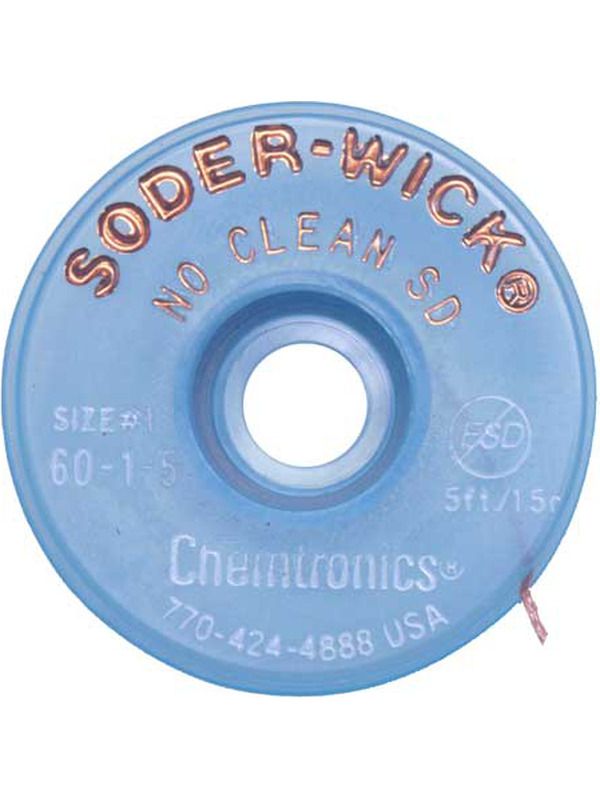

Soder-Wick No Clean Desolder Braid 0.8mm-5ft () 60-1-5
MPN: 60-1-5
|
RPI: 2174061
$18.98
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Soder-Wick No Clean Desolder Braid 0.8mm-5ft ()
Soder-Wick No Clean Desolder Braid 0.8mm-5ft (60-1-5)
Overview
Soder-WickNo Clean Desolder Braid is designed to provide fast and safe desoldering without leaving behind harmful flux residues. Soder-WickNo Clean uses pure, oxygen free copper braid and a patented flux technology to make an efficient and effective desoldering braid. Soder-WickNo Clean SD is available on ESD safe bobbins for protection against damage due to static electricity.
Features and Benefits
- Soder-Wick No Clean packaged in ESD-safe static dissipative bobbins
- Minimizes the risk of damage associated with static electricity
- Patented noncorrosive, halide free, organic no-clean flux
- Desolders up to 40% faster than competitive no-clean braids and leaves boards cleaner
- Meets Bellcore TR-NWT-000078 and ANSI IPC SF-818 for Surface Insulation Resistance
- Soder-Wick No Clean SD safely removes solder in all applications requiring Type ROL0 flux
- BGA braid sized and designed specifically for BGA pad and chip rework/repair so entire BGA pads cleaned in three to four passes
Specifications
- MIL-F-14256 F
- NASA-STD-8739.3 Soldered Electrical Connections
- DOD-STD-883E, Method 2022
- ANSI/IPC J STD-004, Type ROL0
- Meets MIL-STD-883B, Bellcore TR-NWT-000078, ANSI/IPC J SF-818
- Meets parameters tested by the Singapore Institute of Standards and Industrial Research (SISIR) for Solderabilit
- #1 white, 0.030"/0.8mm width,5' / 1.5 m length on SD bobbin
Resources
(Please click title to download)
Safety Data Sheet
Technical Data Sheet
