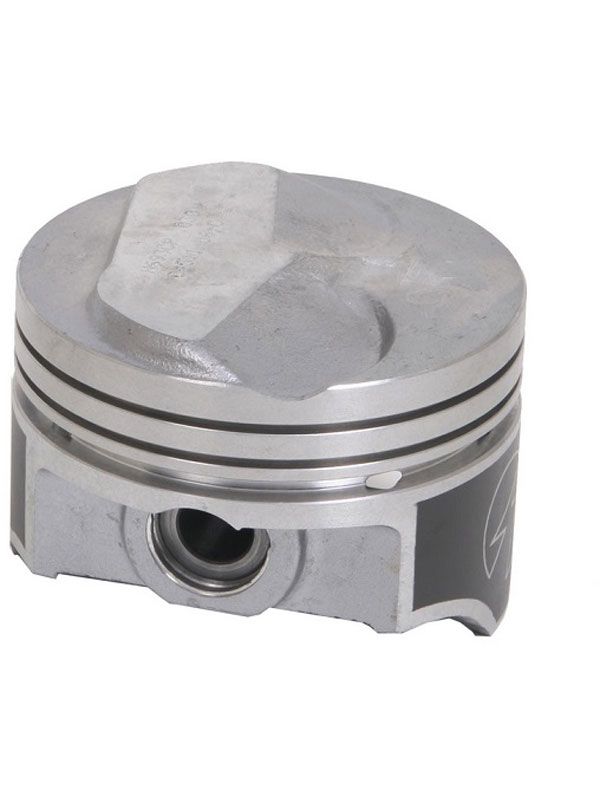

Speed Pro Chev 454 Dome Top Pistons 4.280 Bore 6.135 Rods + 22Cc (H693CP 030) H693CP30
MPN: H693CP30
|
RPI: 198219
$480.78
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
30 Days Return
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Available on bothhypereutectic and POWERFORGEDpistons, DUROSHIELD is anexclusive moly-graphite skirt
coating that extendsengine life and essentiallyeliminates scuffing. Thistechnologically advancedcoating is precisely appliedto the piston through acomputer-controlled process.
DUROSHIELDskirt coated pistons:
- Reduce frictionfor increased fuel economyand horsepower
- Essentially eliminatescuffing and wear
- Prevent damage frominadequate lubrication,especially at start-up
- Improve cylinder sealingfor less blow-by and morepower
- Require noincrease in skirt clearance
PistonSpecifications :
- CID: 461
- Bore: 4.280
- Stroke:4.000
- Rod Length:6.135
- CompressionHeight: 1.640
- Compression Ratio with 100ccchamber volume: 10.91
- Compression Ratio with 117ccchamber volume: 9.48
- Compression Ratio with 124ccchamber volume: 8.97
- Dome Volume: +22.0cc
- Pin Type: Press or float
- Recommended Ring Set:Moly - SPE233K 030, STD Fit -SPR9905 030, File Fit -SPR9590 035
- Coatedskirt
