SRP Pistons Sbf 4.030" Piston -14.5Cc Dish 3.000" St 5.090" Rod 1.600" 138726
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

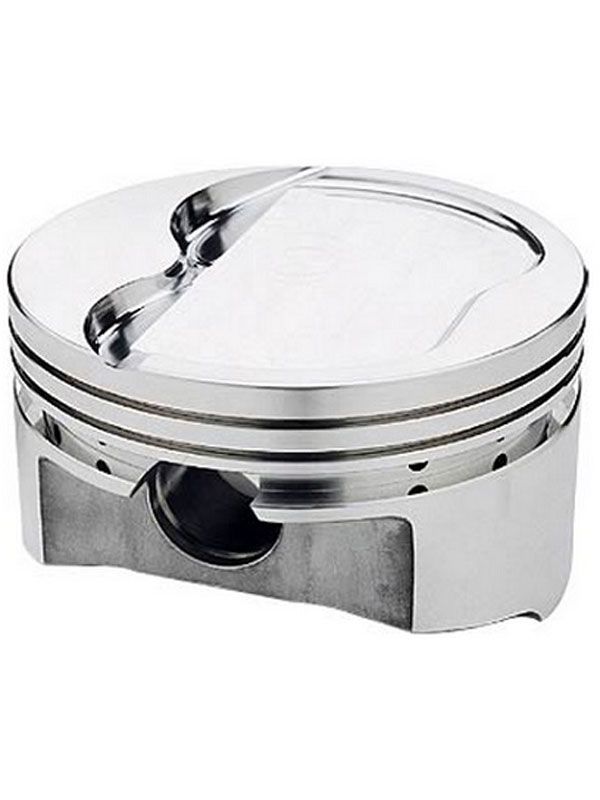

SRP Pistons Sbf 4.030" Piston -14.5Cc Dish 3.000" St 5.090" Rod 1.600"
This piston set is idealfor oval track tostreet/strip applications, itis forged from high silicon4032 aluminium alloy.Features include CNC machinedring grooves and forced pinoiling. Piston set accepts1/16, 1/16, 3/16 rings.
Includes:
- Spiro Lock: 927-042-CS
- Straight Wall Pin:912-2750-14-51S(130g)
Specifications:
- Part #: SRP138726
- CID: 302 & 392
- Bore: 4.030
- Stroke: 3.000 (302) &3.850 (392)
- RodLength: 5.090 (302) &5.956 (392)
- Compression Height: 1.600
- Compression Ratio with54cc chamber volume: 10.4(302) & 11.4 (392)
- Compression Ratio with60cc chamber volume: 9.8(302) & 10.6 (392)
- Compression Ratio with64cc chamber volume: 9.4(302) & 10.2 (392)
- Dome Volume: -14.5cc
- Gram Weight: 493
- Footnote: .912 x 2.750 x .150Wrist pin supplied
- Oversize: 0.030
- Recommended Ring Set (CheckProseal listing to determineoil ring tension):J100F8-4030-5
SRPPistons was founded in 1997by JE Pistons, the world'slargest manufacturer offorged racing pistons. Theidea was simple, to create ahigh quality forged piston atan affordable price. EverySRP forging was created withquality, performance andaffordability in mind. Bydesigning dedicated forgings,the pistons became bothlighter and stronger whilemachining time and scrapaluminium were drasticallyreduced. These factors havereduced the price of SRPPistons and contributed totheir success. Today, over400 different piston partnumbers comprise the SRPproduct line-up, includingChevy, Ford, Chrysler, Hondaand more.
