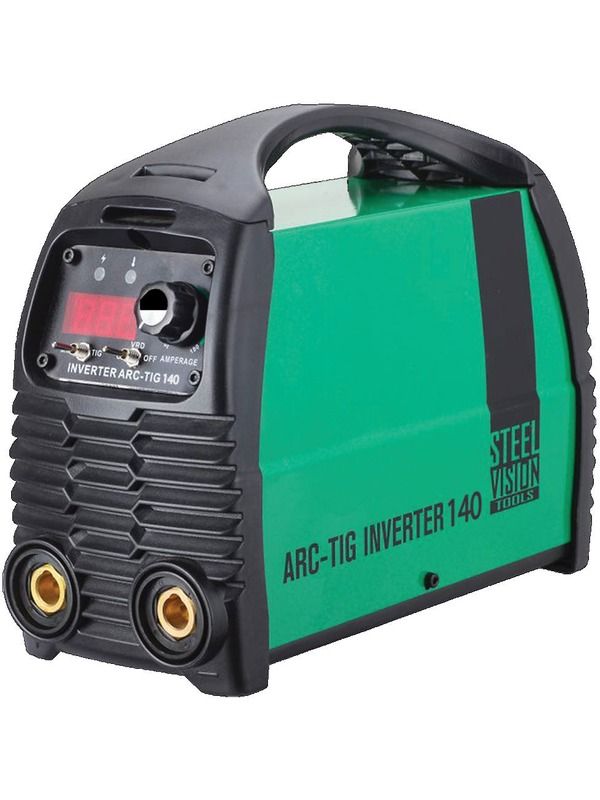

Steel Vision ARC-TIG Inverter 140 Amp Welder SVAT140

Steel Vision ARC-TIG Inverter 140 Amp Welder

These portable machines are reliable, robust and stacked with features that you can expect from a quality welder.

The DC mmA welding capability delivers a smooth and incredibly stable arc allowing easy welding with electrodes producing high quality welds including cast Iron, stainless and low hydrogen.

The AT140 is equipped with DC Lift Arc function, connection of 17V TIG torch that allows quality DC TIG welding of steel, stainless steel, bronze and copper. It is an exceptional machine that is suitable for a wide range of applications including light industrial use, site welding, farming, along with repair and maintenance applications.

• Input Power V: 240 Volts

• ieff Amps: 10 Amp

• Rated Output Voltage: 20.8V - 25.6V

• Output Current Range: mmA/TIG 10 - 140 Amps

• No Load Voltage: 60

• Duty Cycle 40C: mmA/TIG 15% @ 140 Amps

• Protection Class: IP21S

• Insulation Class: F

• Rated Capacity: 6.5kVA

• Specifications: IEC-60974-1:2008

• Dimensions: 365 x 235 x 275mm

• Weight (kgs): 5.8

• 140 Amp Power Source

• 3M Electrode Holder Lead

• 3M Earth Clamp Lead
