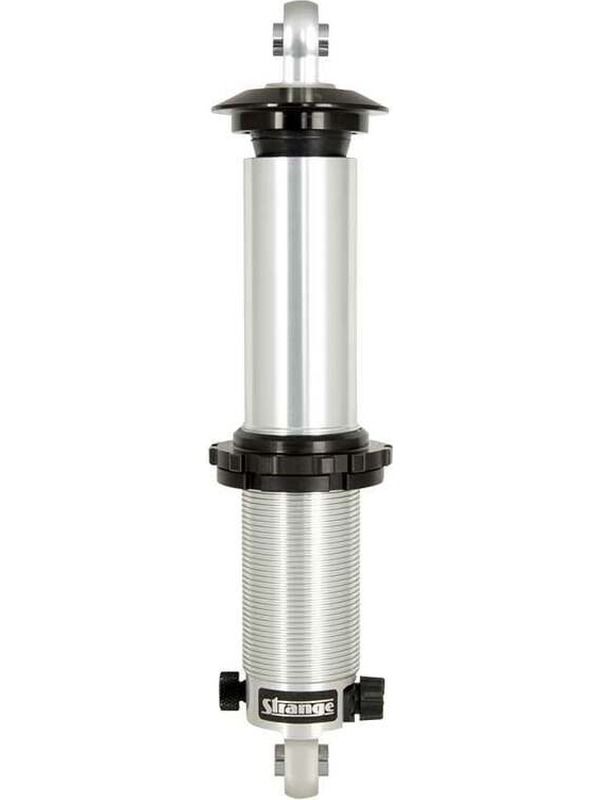

Strange Drag Race Double Adjustable Coil Over Shock 8.15in Stroke
Strange Drag Race aluminum coil-over shocks were developed with the help of several chassis builders, Pro-Mod racers, and World Champion Sportsman racers. The hard work culminated into a shock that is highly responsive, consistent, and can be easily adjusted to adapt to slight changes in atmospheric conditions.
Each Strange shock body, eyelets, spring seat and jam nut are fully machined from high-grade aluminum. Strange fully assembles and inspects each shock. The Strange dynamometer facility enables us to analyze shocks at all shaft speeds and continue our valve development to stay at the forefront of Drag Racing shock technology. The shocks incorporate a wide range of adjustments that suit most needs, but custom valving is always available.
Strange Aluminum Double Adjustable Shocks.
Double adjustable coil-over shocks are offered to drag racers requiring more control of the suspension system. The double adjustable shock offers all the benefits of the single adjustable shock, but also incorporates an additional knob for accurately adjusting compression (bump).
Application
Drag Race Vehicles
Short Stroke
2.62" thru 3.86" A-Arm Systems
3.86 Some Dragster 4-Link Systems
Long Stroke
4.64" thru 8.15" 4-Link & Ladder Bar Systems
Dimension A
Stroke 8.14" / Extended 22.40" / Compressed 14.25"
With .563" Bump Rubber Installed
Stroke 7.587" / Compressed 14.813"
Recommended Ride Height
17" 20"
Features
- Lightweight aluminum body
- 10 extension & compression settings
- Provides a wide range of control
- Easily accessible independent external adjustment knobs
- Allows quick adjustments for varying conditions
- Coil-over design simplifies changes to ride height
- 1.00" wide high misalignment spherical rod ends
- Ability to be rebuilt or revalved
