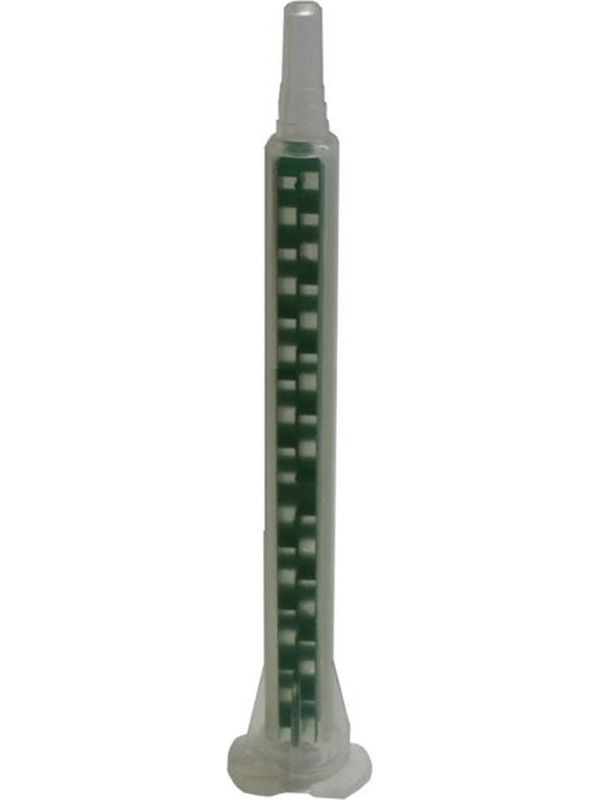

Sulzer Mixpac MAQ Quadro Static Mixing Nozzle System-A & Q MAQ 05-24L 300026

Sulzer Mixpac MAQ Quadro Static Mixing Nozzle System-A & Q MAQ 05-24L

300026 (MAQ 05-24L) Quadro is a static mixer nozzle for use with 50ml bayonet attachment dual cartridges. Best suited for use with 1:1 and 2:1 ratio cartridges.

All mixer nozzles are industrial grade safe to 100psi and silicone free plastics. Manufactured from high density polypropylene with green mix elements. Slip nozzle end for precision application of materials or attachment of luer lock tip.

• Precision European manufactured products

• Industrial grade safe to 100 PSI pressure

• Handles wide variety of two-part resins

• Silicone-free plastic materials

• Bayonet attachment twist-on/ twist-off applications

Use this nozzle with two-component materials such as epoxy resins, silicones, PUs and others. The nozzle attaches to the cartridge with a bayonet push and twist secure lock.

• Part Number: 300026 (MAQ 05-24L)

• Number Elements: 24

• Inner Diameter: 5.0mm

• Outer Diameter: 7.0mm

• Nozzle Diameter: 1.5mm

• Length: 115mm

• Retained Volume: 1.9ml

• Material: Polypropylene

• Colour: Clear Body / Green Elements

• Use with: 50ml, 1:1 / 2:1 ratio
