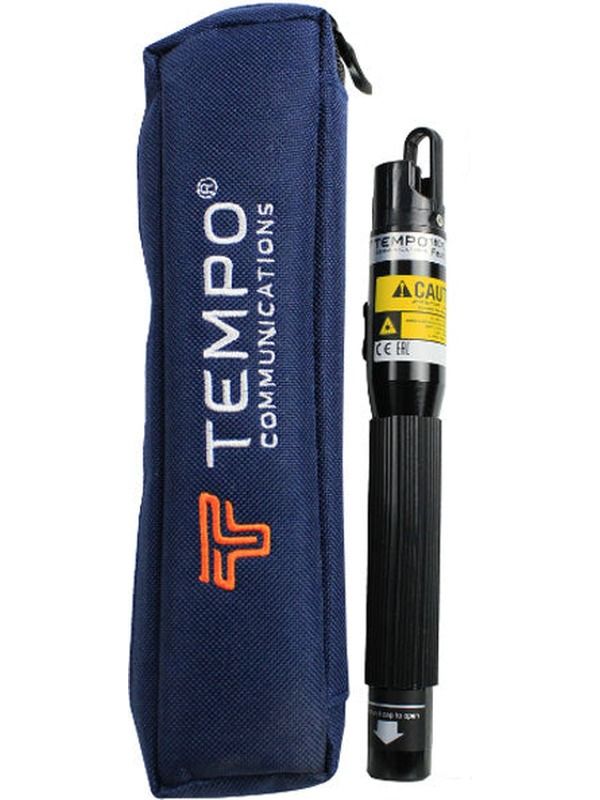

Tempo Communications Visual Fault Locator Kit 180XL
MPN: 180XL
|
RPI: 3269380
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Tempo Communications Visual Fault Locator Kit
OverviewThe 180XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The long reach of the 180XL allows the technician to safely confirm fiber continuity up to distances of 7km.
FeaturesVisual fault locating
Confirm fiber continuity
Allows the technician to quickly locate faults without the use of more expensive equipment
Class 2 designation provides safe light levels for the technician
7km distance
Universal 2.5mm bulkhead
Optional 1.25mm adapter available
Class 2 certification, 0dBm output power
Compatible with Singlemode and Multimode fibers
2Hz modulation mode
| Wavelength | 650nm +/-10nm |
| Maximum Output Power | 0dBm |
| Laser Classification | Class 2 |
| Modes | CW and 2Hz Modulation |
| Display | Red/Green LED |
| Fiber Type | Singlemode, Multimode |
| Connector interface | 2.5mm Universal, Optional 1.25mm adapter |
| Battery | AA (2 Included) |
| Battery Life | 80 Hours with 3.9Wh Batteries |
| Weight | 0.26lbs, (120g) (not including batteries) |
| Dimensions | 7.08" x 0.91" Dia (180mm x 23mm Dia) |
| Operating Temperature | -10C to +45C |
| Storage Temperature | -40C to +70C |
| Maximum Distance | 7km |
Resources
Data Sheet
