Toptul 13pc Alternator Puller Remover Kit JGAI1301
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

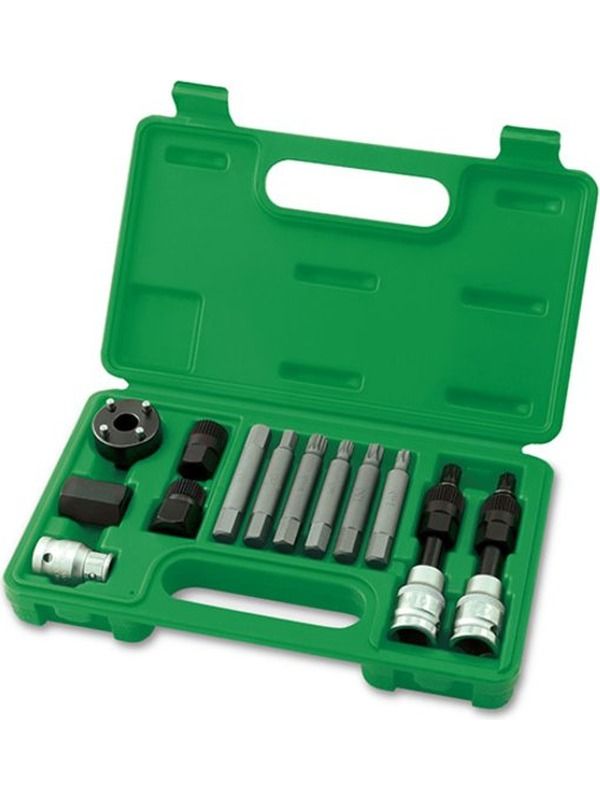

Toptul 13pc Alternator Puller Remover Kit
OverviewItem No: JGAI1301
Designed for the easy removal of alternator free-wheel drive pulleys either on or off the vehicle
Locks the alternator, allowing the central locking bolt of the pulley to be released
Applications: BMW, VW, Audi, Mercedes, Renault, Ford, Porsche, Fiat and etc.
BLOW CASE: (W) 245 x (D) 145 x (H) 45 (mm)
Spline Alternator Combination Bit Socket (W/33 Teeth Hex Reaction Nut)
1/2" Dr. x M10, L=110mm, Hex: 17mm
Star Alternator Combination Bit Socket (W/33 Teeth Hex Reaction Nut)
1/2" Dr. x T50, L=110mm, Hex: 17mm
10mm Hex Shank Hexagon Bits
8mm & 10mm (L=75mm)
10mm Hex Shank Star Bits
T40 & T50 (L=75mm)
10mm Hex Shank Spline Bits
M8 & M10 (L=75mm)
Quick Change Bit Holder
1/2" Dr. x 10mm (Hex)
33 Teeth Hex Reaction Nut
Hex: 17mm, O.D. 19.5mm, I.D. 11.8mm L=30mm
33 Teeth Hex Reaction Nut
Hex: 22mm, O.D. 19.5mm, I.D. 11.8mm L=30mm
Hexagon Reaction Nut
Hex: 22mm, I.D. 11.8mm L=32mm
4 Pin Round Reaction Nut with Hex Tip
Hex: 17mm , O.D. 35mm, I.D. 11.8mm L= 37mm
