Trans-Dapt Engine Conversion Kit Crossmember / Gaskets / Hardware / Hea
Trans-Dapt Engine Conversion Kit Swap In A Box Crossmember / Gaskets /
Trans-Dapt Engine Conversion Kit Swap In A Box Crossmember / Gaskets / 42211
MPN: 42211
|
RPI: 2257277
or 4 interest-free payments of
$25,000.25
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
086923422112 |
| MPN |
42211 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
No |
| Automatic Transmission - Floor |
Yes |
| Baffled |
No |
| Bolts/Studs Included |
Yes |
| Collector Bolts Included |
Yes |
| Collector Size |
3 in. |
| Collector Style |
Ball and Socket Style (Gasketless) |
| Contents |
Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets |
| Crank Shaft Wiper Included |
No |
| Cylinder Head |
Factory Style |
| Dipstick Port |
No |
| Drain Plug Included |
Yes |
| Engine |
Chevy LS Series |
| Exhaust System Dia |
2-1/2 in. |
| Fastener(s) Included |
Yes |
| Finish |
Uncoated Headers |
| Flange Thickness |
3/8 in. |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Header Finish |
Uncoated |
| Header Material |
T304 Stainless Steel |
| Header Port Shape |
Round |
| Header Style |
Mid-Length Tube |
| Hedman Hedders Included |
Yes |
| Installation Hardware Included |
Yes |
| Installation Notes |
Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter. |
| Kicked Out |
No |
| Manual Transmission - Column |
No |
| Manual Transmission - Floor |
No |
| Material |
T304 Stainless Steel |
| O2 Provision |
No |
| O2 Sensors Included |
No |
| Oil Pan Bolts Included |
Yes |
| Oil Pan Capacity |
5 Qt. Capacity |
| Oil Pan Depth (in) |
2 in. at front of Pan; 6 in. at Rear Sump |
| Oil Pan Finish |
Red Painted |
| Oil Pan Included |
Yes |
| Oil Pan Material |
Steel |
| Oxygen Sensor Bung Included |
No |
| Package Contents |
Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets |
| Pickup # |
2522 |
| Pickup Included |
Yes |
| Port Shape |
Round |
| Power Steering |
Yes |
| Primary Tube Diameter (in) |
1.75 in. |
| Primary Tube Gauge |
16g |
| Reducer Outlet Diameter |
2-1/2 in. |
| Reducer Outlet Size |
2-1/2 in. |
| Reducers Included |
Yes |
| Replacement Gasket |
27470 |
| Replacement Head Flange Gasket |
Yes |
| Replacement Headers |
62710 |
| Replacement Motor Mount Kit |
4201 |
| Replacement Mount Pads |
4209 |
| Replacement Oil Pan |
1108 |
| Sump Dimensions |
6 in. Deep x 8.25 in. Wide x 7 in. Long |
| Sump Location |
Rear |
| Sump Style |
Wet Sump |
| Transmission Compatibility |
4L60E |
| Transmission Mount Type |
Crossmember |
| Transmission Notes |
Not for use with 4L80E or 4L85E Transmissions. |
| Transmission Type |
Automatic Transmission |
| Tube Design |
MID-LENGTH |
| Tube Diameter |
1-3/4 in. |
| Tube Length |
Mid-Length Tubes |
| Tube Size |
1-3/4 in. |
| Tube Style |
Mid-Length |
| Variations |
42011, 42012, 42013. |
| Welding Required |
No |
| Windage Tray Included |
No |
| Y-Pipe Included |
No |
Trans-Dapt Engine Conversion Kit Swap In A Box Crossmember / Gaskets /

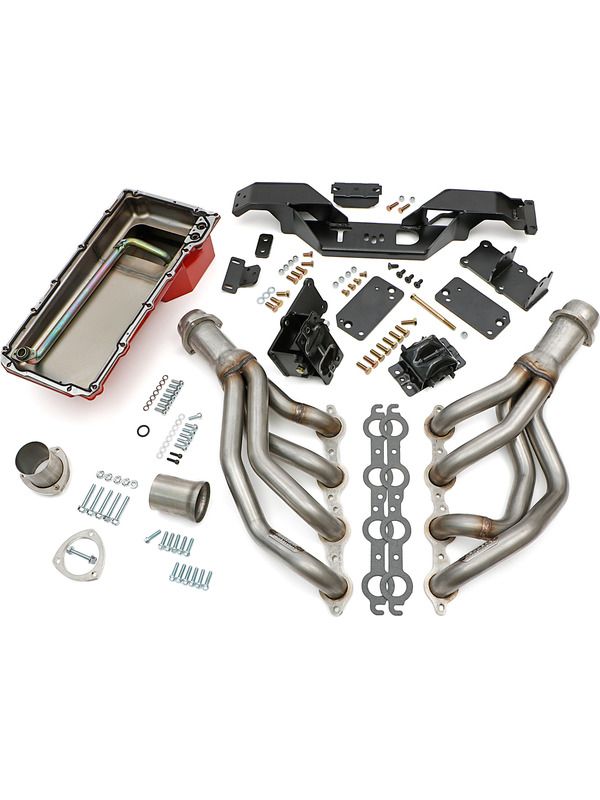

Engine Conversion Kit - Swap In A Box - Crossmember / Gaskets / Hardware / Headers / Mounts / Oil Pan / Pickup Tube - Automatic Transmission - LS Series - GM F-Body 1967-72 - Kit
