Trans-Dapt Engine Oil Pan Kit Fabricated Rear Sump 5 qt 6 in Deep Single (176)
Trans-Dapt Engine Oil Pan Kit Stamped Rear Sump 7 qt 6 in Deep Single Fil (180)
Trans-Dapt Engine Oil Pan Kit Fabricated Rear Sump 5 qt 6 in Deep Double (177) 0177
MPN: 0177
|
RPI: 2257050
or 4 interest-free payments of
$25,000.00
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
086923001775 |
| MPN |
0177 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Baffled |
No |
| Bypass Mounting Style |
No Bypass Adapter |
| Capacity |
5 Qts. |
| Color |
RED |
| Construction |
Stamped/Fab |
| Contents |
Pan, Pickup,Remote Filter Base, Oil Lines, Fittings, Nipple, Gaskets & Hardware |
| Crank Shaft Wiper Included |
No |
| Depth |
2 in. at front of Sump; 6 in. at Rear |
| Dipstick Provision |
No |
| Drain Plug Thread Size |
1/2 in.-20 |
| Engine |
Chevy LS Series |
| Engine Manufacturer |
Chevrolet |
| Engine Notes |
4.8L, 5.3L, 6.0L GM LS Series Engines |
| Engine Oil Cooler Return Fitting |
No |
| Fastener(s) Included |
Yes |
| Filter Bypass Included |
No |
| Filter Bypass Style |
Not Required |
| Filter Nipple Thread Size |
3/4 in.-16 |
| Finish |
RED Painted |
| Fitting Material |
Brass |
| Fitting Quantity |
4 |
| Fitting Thread |
-10 AN |
| Fitting Type |
Hose Barb |
| Gasket Or Seal Included |
Yes |
| Hardware Included |
YES |
| Hose Connection Type |
Push Lock |
| Hose ID |
1/2 in. |
| Hose Length |
30 in. |
| Hose Material |
Flame Resistant Nitrile/Rubber |
| Hose OD |
0.75 in. |
| IMPORTANT! |
NOT FOR DIESEL, MARINE OR RACE USE! |
| Installation Hardware Included |
Yes |
| Kicked Out |
No |
| Kit Type |
LS Swap Filter Integration Kit & Oil Pan |
| Length |
7 in. |
| Material |
Steel Pan/Cast Aluminum Filtration |
| Nipple Included |
Yes |
| Oil Filter Compatibility |
PH8A or Equivalent (or equivalent) |
| Oil Line Kit Included |
Yes |
| Oil Pan Bolts Included |
Yes |
| Oil Pan Capacity |
5 Qt. Capacity |
| Oil Pan Depth (in) |
6 in. |
| Oil Pan Finish |
Red Painted |
| Oil Pan Material |
Steel |
| Pan Capacity |
5 Qts. |
| Pickup # |
2522 |
| Pickup Included |
Yes |
| Plug Included |
Yes |
| Port Size |
-10AN |
| Pressure Rating |
300 PSI |
| Race Only |
No |
| Remote Base Filter Size |
PH8A (or equivalent) |
| Remote Filter Base Style |
Dual Filter; Horizontal Port |
| Replacement Gasket Set |
4336 |
| Replacement Nipple |
1034 |
| Replacement Oil Pan |
1108 |
| Single or Dual Filter |
Dual |
| Stroker Clearanced |
No |
| Sump Dimensions |
6 in. Deep, 8.25 in. Wide,7 in. Long |
| Sump Location |
Rear |
| Sump Style |
Wet Sump |
| Type |
Oil Pan with Remote Filter Kit |
| Width |
8-1/4 in. |
| Windage Tray Included |
No |

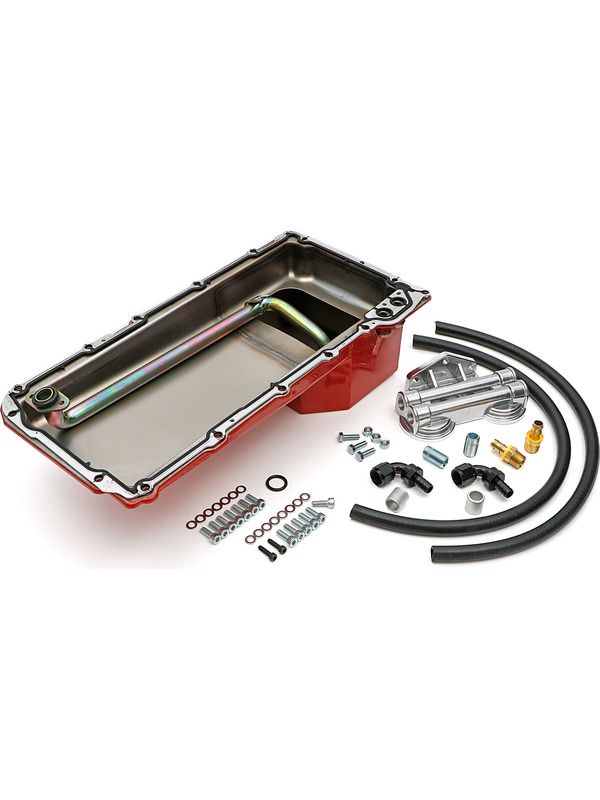

Trans-Dapt Engine Oil Pan Kit Fabricated Rear Sump 5 qt 6 in Deep Double (177)
Engine Oil Pan Kit - Fabricated - Rear Sump - 5 qt - 6 in Deep - Double Filter - Horizontal Port - Gasket / Hardware / Oil Filter Relocation System / Pickup - Steel - Red Painted - GM LS-Series - GM F-Body 1967-69 - Kit
