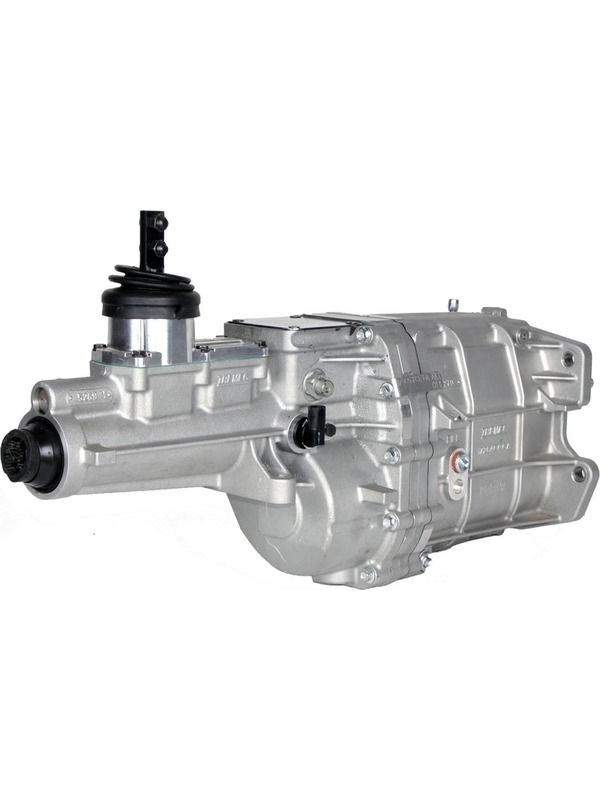

Tremec TKX 26-Spline Manual Transmission 5 Speed Fits GM V8 TMTCET17805

Tremec TKX 26-Spline Manual Transmission 5 Speed Fits GM V8

Specially designed for the aftermarket with universal packaging, the TKX 5-speed RWD manual transmission is a power horse for your Ford or GM restomod project. With superior shifts even at high RPMs, the TKX provides extreme durability, excellent shifting performance and a sleek casing for a customizable fit.

Like all TREMEC aftermarket transmissions, the TKX is made from 100% brand-new OEM-quality components.

General product details:

• Bolts up to a standard GM Muncie bellhousing or use a Quicktime bellhousing
• The TKX has 600 lbs.-ft. of torque capacity and is capable of engines speeds of 8,000 rpm with shifts at 7,500 rpm.
• It is available in multiple gear ratio configurations.
• Designed for multiple applications with three shifter locations. Compact, end-loaded design provides clearance in most transmission tunnels without floor
• Increased case strength with 3-piece aluminum housing provides outstanding structural stiffness (includes main case, intermediate plate and rear extension). Gaskets at all flanges simplifies installation and eliminates fluid
• Superior shift-ability through use of multi-cone synchronizers and hybrid synchronizer rings made of sintered bronze and carbon
• Noise, vibration and harshness (NVH) minimized with gear layout to best control stress All gears supported by caged needle bearings to reduce end play on the gears.
• All gears and shafts made from special grade steel (ASTM 4615), providing increased torque carrying
• Equipped with a high performance short-throw billet aluminum shifter that isolates road noise, while providing clean, crisp
• Robust design with internal 3-rail shift system and steel shift
• Wide gear width increases gear life and torque
• Built-in reverse light switch and cruise control safety
• Slimmest 5-speed on the market for improved tunnel clearance
