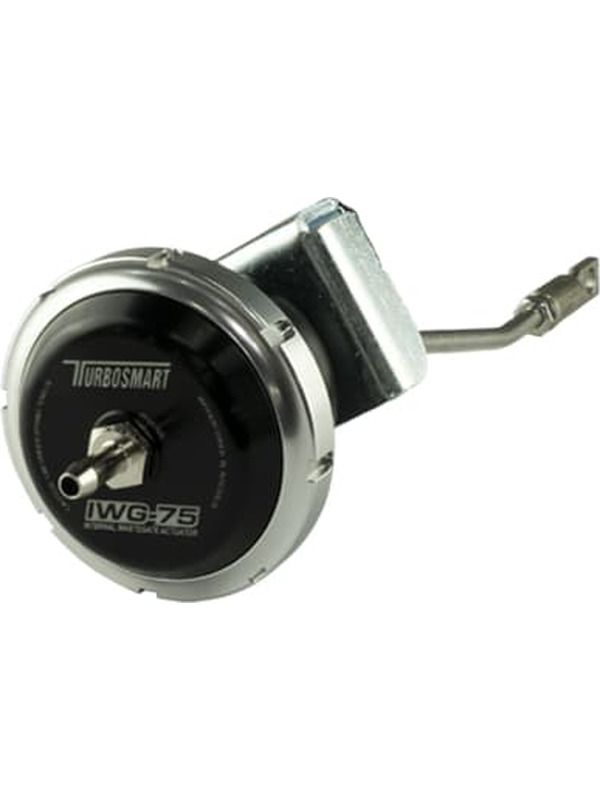

Turbosmart IWG75 Internal Wastegate Actuator For Mitsubishi EVO 4-8 Blk 24 PSI TS-0601-1242
MPN: TS-0601-1242
|
RPI: 2428679
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
THIS PRODUCT HAS BEEN DISCONTINUED AND IS NO LONGER AVAILABLE IN THIS BASE PRESSURE. Refer, Instead IWG75 Wastegate Actuator Suit Mitsubishi EVO 4-8 (26PSI).
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Available In
10 PSI / 0.68 BAR:TS-0601-1102
14 PSI / 1.00 BAR:TS-0601-1142
18 PSI / 1.24 BAR:TS-0601-1182
22 PSI / 1.51 BAR:TS-0601-1222
26 PSI / 1.79 BAR:TS-0601-1262
Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
Notes
14 psi Version is a direct replacement for the factory item. All other versions will require tuning / calibration of your engines ECU.
This is a bolt on fitment for the TD05H turbocharger as fitted factory to the 46G3 Powered Mitsubishi Evolution 4-8.
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Available In
10 PSI / 0.68 BAR:TS-0601-1102
14 PSI / 1.00 BAR:TS-0601-1142
18 PSI / 1.24 BAR:TS-0601-1182
22 PSI / 1.51 BAR:TS-0601-1222
26 PSI / 1.79 BAR:TS-0601-1262
Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
Notes
14 psi Version is a direct replacement for the factory item. All other versions will require tuning / calibration of your engines ECU.
This is a bolt on fitment for the TD05H turbocharger as fitted factory to the 46G3 Powered Mitsubishi Evolution 4-8.
