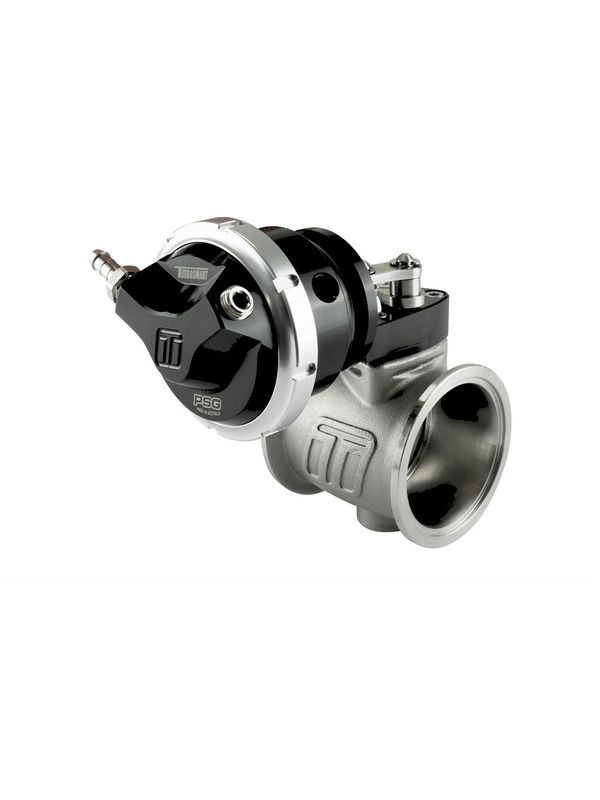

Turbosmart Pneumatic StraightGate50 6 PSI External Wastegate Black
The StraightGate50 from Turbosmart is the world's highest-flowing external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.
The Boost-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a traditional boost-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single and Twin port control, the StraightGate50 is simple to use, and packed with performance, flow and features!
The Turbosmart StraightGate50 has been designed from the ground up and validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.
Features:
- 50mm (1.97in) Butterfly Style Zero-Offset Valve
- 383.9 CFM / 10.87m3 per minute flow
- Stainless Steel (630) Butterfly and shaft
- Stainless Steel (347) Main Body
- Stainless Steel (Heat Treated 431) V-Band Clamps
- Aluminium (6262 T6 Anodised) Bracket and Actuator
- Turbosmart unique Locking Collar Ring
- Base Spring Options from 6psi to 42psi
- Suitable for Single or Twin Port Boost-Based Control
- Stainless Steel (N60) Linkages and Control Arm
Kit Includes:
- Boost-Based Pneumatic StraightGate50
- StraihgtGate50 Inlet and Outlet Flanges
- StraightGate50 Inlet and Outlet Weld Flanges
- 6psi Springs Pre-Installed
- All Other Springs including in box
- 2 x 1/8 NPT Hose Tail Fittings
- 2 x 1/8 NPT Blanking Plugs
- Turbosmart Decal
