Turbosmart TS-1 Turbocharger 6870 Kompact 0.96AR Wastegated TS-1-6870B-T4096E
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

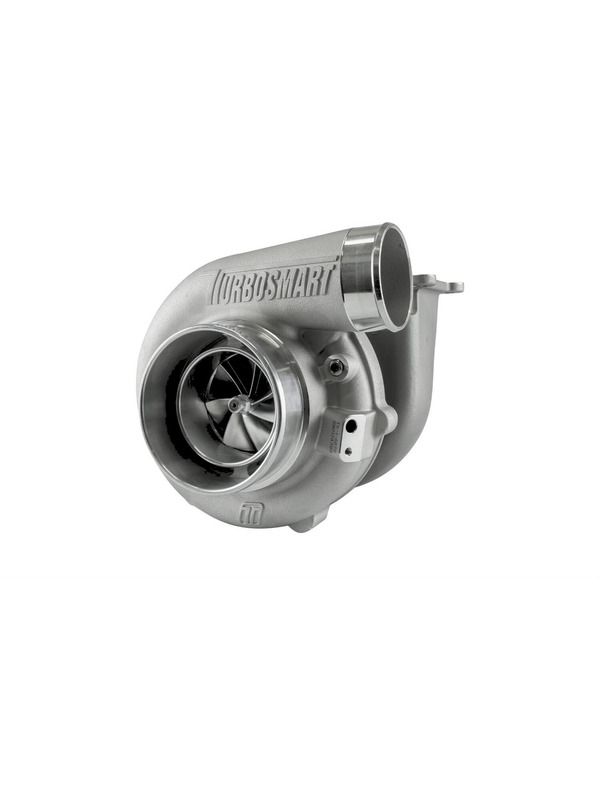

Turbosmart TS-1 Turbocharger 6870 Kompact 0.96AR Wastegated
Smaller, Lighter and Faster - The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike.
Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.
The TS-1 series are oil cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained.
The TS-1 turbocharger series has taken a whole of engine approach to increasing performance, aiming to achieve power through reduced back pressure and high performance turbines - while being smaller, lighter and faster in response than other solutions on the market.
Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal A/R's and flow
T14 Inconel turbine wheel for extreme EGT's
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing
Specifications
Compressor Inlet: 4"" / 101.6mm
Compressor Inducer: 58mm
Turbine Inlet: T3
Turbine Exducer: 62mm
Turbine AR: 0.63
Turbine Outlet: V-Band (3.00"")
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 600-750HP
