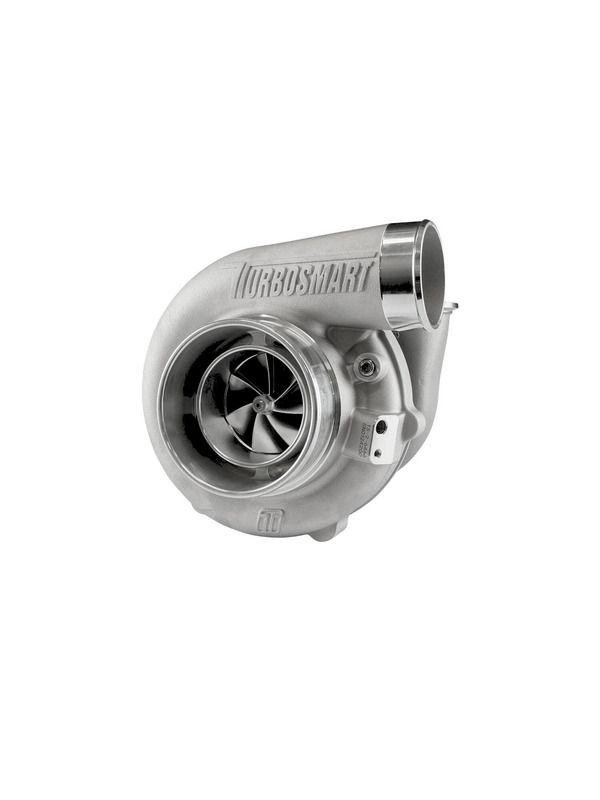

Turbosmart TS-2 Turbocharger 6466 V-Band 1.07AR Wastegated TS-2-6466B-VB107E

Turbosmart TS-2 Turbocharger 6466 V-Band 1.07AR Wastegated

Smaller, Lighter, and Faster-The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike.

The TS-2 series is water and oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a central shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability, and supply you've come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high-performance levels at lower shaft speeds. It is mated with a unique turbine wheel to provide power at high loads and maintain flow.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines - While being smaller, lighter and faster in response than other solutions on the market.

Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD-driven designed housings for optimal ARs and flow
T14 Inconel turbine wheel for extreme EGTs
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Specifications
Compressor I"let: 4" / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: V-Ban" (2.25")
Turbine Exducer: 62mm
Turbine AR: 0.82
Turbine Outlet: V-Ban" (3.00")
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 650-800HP
