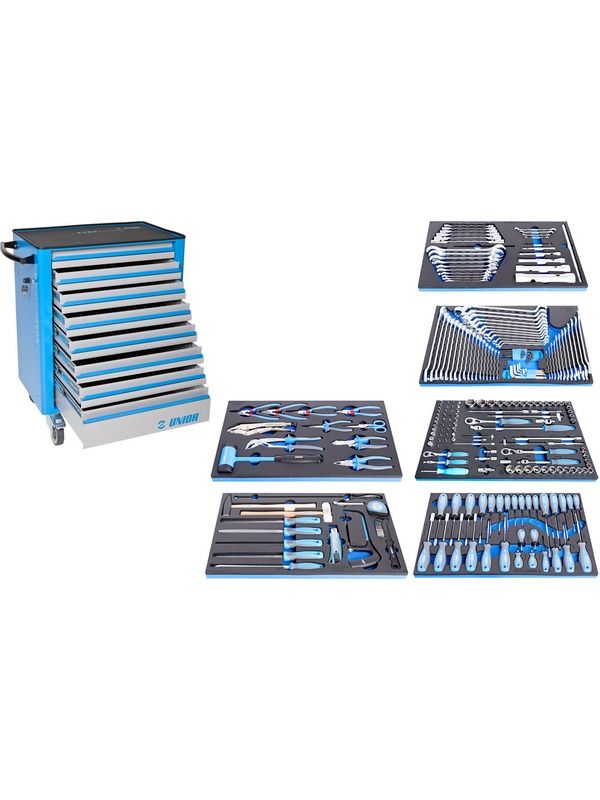

Unior 1011DEV6 Tool Set with Tool Carriage/Cabinet 238 Pc 624138

Unior 1011DEV6 Tool Set with Tool Carriage/Cabinet 238 Pc

940EV6: Tool Carriage Eurovision

Features

• material: premium PLUS sheet metal

• possibility to add accessories

• blind nuts for fixing accessories are mounted on the carriage.

• static load capacity of carriage without casters: 1600kg

• dynamic load capacity of carriages: 500 kg

• maximum capacity of each drawer: 45kg

• 8 drawers (7x L 563 x W 365 x H 70mm, 1x L 563 x W 383 x H 150mm)

• basic dimensions with handle and casters L 800 x W 440 x H 923mm

• total volume of drawers: 135 litres

• drawers compatible with SOS tool trays 1/3, 2/3, 3/3

Advantages

• coated with eco colour of Qualicoat quality standard

• opening and closing of drawers is very simple due to the uniform solution - drawer handle on the upper side enables users a synchronic grip and opening of a carriage drawer.

• drawer closing mechanism prevents unwanted opening of drawers

• drawers with non-slip interior synthetic lining

• central locking system with a lock and folding key

• lock with key included also foam keyring

• full extension drawers with top quality ball-bearing slides

• oil and acid resistant casters of a diameter of 125mm, one with brake, which blocks spinning and swiveling of the caster

Specifications

964/28SOS: 60 Piece Spanner Set in SOS Tool Tray

Features

• Tool tray dimension: 564 x 364 x 30 mm

• Compatible with drawers of Eurostyle, Eurovision, Europlus and Hercules (front drawers) line

Contents

• 12x open end wrench (article 110/1) dim. 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32

• 18x long combination wrench (article 120/1) dim. 6, 7, 8, 9, 10, 11, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27

• 12x ring wrench (article 180/1) dim. 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32

• 9x ball-end hex wrench (article 220/3S) dim. 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 on plastic clip

• 9x wrench with TX profile and hole (article 220/7TX) dim. TR 8, TR 9, TR 10, TR 15, TR 20, TR 25, TR 27, TR 30, TR 40 on plastic clip

964/29ASOS: 28 Piece Spanner Set in SOS Tool Tray

Features

• Tool tray dimension: 564 x 364 x 30 mm

• Compatible with drawers of Eurostyle, Eurovision, Europlus and Hercules (front drawers) line

Contents

• 6x tubular box wrench (article 215/2) dim. 6x7, 8x10, 13x17, 19x22, 24x27, 30x32

• Rod (article 215.1/2) 1x dim. 230 (for tubular box wrench 6-17mm) and 1x dim. 330 (for tubular box wrench 18-32mm)

• 6x double swivel end socket wrench (article 202/1) dim. 8x9, 10x11, 12x13, 14x15, 16x17, 18x19

• 10x offset open ring wrench (article 183/2) dim. 8x10, 10x11, 11x13, 12x14, 16x18, 17x19, 19x22, 22x24, 24x27, 30x3

964/30SOS: 96 Piece Socket Wrench with Accessories Set in SOS Tool Tray

Features

• Tool tray dimension: 564 x 364 x 30 mm

• Compatible with drawers of Eurostyle, Eurovision, Europlus and Hercules (front drawers) line

Contents

• 12x socket 1/4", 6 point (article 188/2 6P) dim. 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13

• 7x socket 1/4" with internal TX profile (article 189/2) dim. E4, E5, E6, E7, E8, E10, E11

• 19x screwdriver socket 1/4"; hex (article 187/2HX dim. 3, 4, 5, 6, 7), TX profile (article 187/2TX dim. TX8, TX10, TX15, TX20, TX25, TX27, TX30, TX40), crosstip (article 187/2PH dim. PH 1, PH 2, PH 3), flat (article 187/2SL dim. 0.8x4, 1,0x5,5, 1,2x7)

964/33SOS: 30 Piece Screwdriver Set in SOS Tool Tray

Features

• Tool tray dimension: 564 x 364 x 30 mm

• Compatible with drawers of Eurostyle, Eurovision, Europlus and Hercules (front drawers) line

Contents

• 5x flat screwdriver TBI (article 605TBI) dim. 0.5x3.0x80, 0.8x4.0x100, 1.0x5.5x125, 1.2x6.5x150, 1.6x8.0x175

• 4x crosstip (PH) screwdriver TBI (article 615TBI) dim. PH 0x60, PH 1x80, PH 2x100, PH 3x150

• 2x stubby flat screwdriver TBI (article 627TBI) dim. 1.0x5.5x25, 1.2x6.5x25

• 2x stubby crosstip (PH) screwdriver TBI (article 626TBI) dim. PH 1x25, PH 2x25

• 9x TBI screwdriver with TX profile (article 621TBI) dim. TX 6, TX 8, TX 10, TX 15, TX 20, TX 25, TX 27, TX 30, TX 40

• 8x socket wrench with TBI handle (article 629TBI) dim. 6, 7, 8, 9, 10, 11, 12, 13

964/48SOS: 11 Piece BI Pliers & Hammer Set in SOS Tool Tray

Features

• Tool tray dimension: 564 x 364 x 30 mm

• Compatible with drawers of Eurostyle, Eurovision, Europlus and Hercules (front drawers) line

Contents

• 1x combination pliers (article 406/1BI) dim. 180

• 1x grip pliers (article 430/3) dim. 250

• 1x waterpump pliers (article 447/1HPP) dim. 240

• 1x Heavy duty diagonal cutting nippers (article 466/1BI) dim. 180

• 1x straight long nose pliers with side cutter and pipe grip (article 508/1BI) dim. 170

• 2x external lock rings pliers, straight and bent, dim. 180

• 2x internal lock rings pliers, straight and bent, dim. 180

• 1x Electricians` scissors (article 582/3P) in dim. 145

• 1x bumping hammer (article 819A) v dim. 45

964/49SOS: 13 Piece Tool Set in SOS Tool Tray

Features

• Tool tray dimension: 564 x 364 x 30 mm

• Compatible with drawers of Eurostyle, Eurovision, Europlus and Hercules (front drawers) line

Contents

• 1x measuring tape (article 710P) dim. 3m

• 1x utility knife (article 556A) dim. 160x18

• 1x saw (article 753P) dim. 150

• file with handle, half smooth, dim. 200 mm; 1x flat , 1x half-round, 1x three-square, 1x square, 1x round

• 1x locksmiths` hammer (article 812) dim. 400

• 1x plastic hammer (article 820) dim. 32

• 1x tyre lever with handle (article 300/2C) v dim. 320

• 1x feeler gauges (article 701) v dim. 0.05 - 1x20

• 1x brush for cleaning disk brake shoes (article 2035)

• 1x flexible pick up tool with magnet (article 2087)
