Vision Engineering - Mantis Compact Bundle MANCOMBUN
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

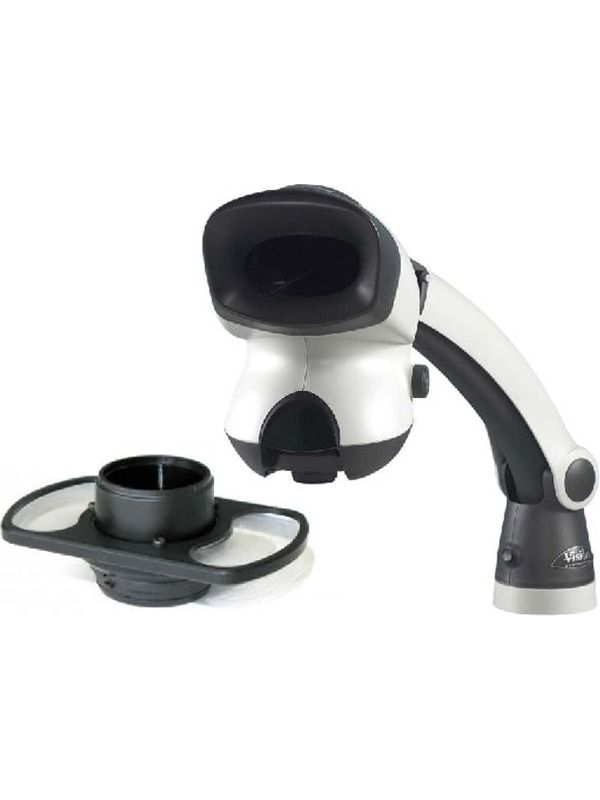

Vision Engineering - Mantis Compact Bundle
IncludesMantis Compact Head (MANMCH-001)
Mantis Compact Universal Stand with Dust Cover (MANMCS-005)
Mantis Compact Objective Lens X2
Mantis Compact Head (MANMCH-001)
Overview
A low magnification visual inspection microscope, providing truly superb 3D imaging with unparalleled freedom of head movement.
Featuring Vision Engineering's patented eyepiece-less technology, Mantis Compact is the low magnification stereo viewer of choice for a wide range of inspection, manipulation or rework tasks requiring magnification.
Features
2x, 4x, 6x and 8x quick change magnification options
Superior ergonomics for fatigue-free viewing and increased quality / productivity
Superb hand-eye co-ordination for inspection and manipulation tasks
Long working distance and large field of view
True colour, LED illumination providing up to 10,000 hours of shadow-free viewing
Choice of stands to suit numerous applications
Fatigue-Free Stereo Viewing
Patented optical technology not only provides superb 3D imaging, but also allows operators freedom of head movement. Superior ergonomics leads to greater productivity, increased throughput, improved quality control as well as minimal fatigue. Users are also able to wear glasses, if required. Mantis Compact is ideal for a wide range of tasks requiring 3D imaging with superb hand-to-eye co-ordination, including electronics inspection, dental re-work, dissection and preparation tasks, plus many other precision magnification tasks.
Stand Options
Universal arm for simplicity and flexibility
Rigid bench stand for added stability with substage illumination options
Articulated arm for applications requiring extended reach, without compromising stability
Floor stand (with articulated arm) for inspection where subjects are immobile, or require a standing position
Mantis Compact Universal Stand with Dust Cover (MANMCS-005)
Overview
The Mantis Compact Universal Stand clamps to most benches or other work areas to provide flexibility and ease of use when using the Mantis Compact Head. The Mantis Compact Universal Stand includes dust cover.
Mantis Compact Objective Lens X2
Overview
for use with Mantis Compact Head provides clear, sharp images with a long working distance and large depth of field. Easy to use, simply 'twist and lock' to change the objective lens.
The x2 objective offers operators maximum working distance up to 167mm on the Mantis Compact.
Objective Lens: 2x
Working Distance: 167mm
Field of View: 45.0mm
