Walbro EFI Fuel Pump Hellcat 525LPH Up To 950HP F90000285 EFI-525E85
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

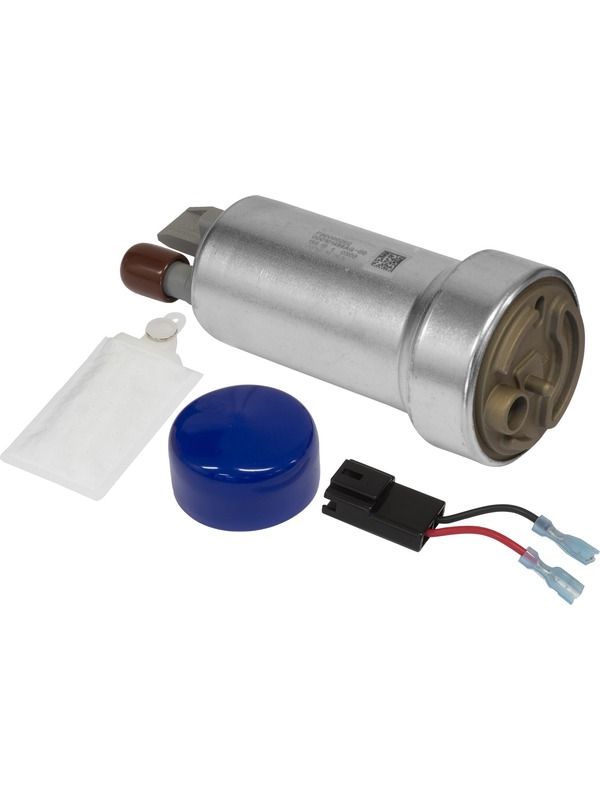

Walbro EFI Fuel Pump Hellcat 525LPH Up To 950HP F90000285
F90000285 HELLCAT 525LPH FUEL PUMP HAS THE HIGHEST OUTPUT IN-TANK FUEL PUMP ON THE MARKET TI Automotive F90000285 39/50 Fuel Pump Enjoy the highest output on todays market with our new DCSS 39/50 fuel pump. Able to support an aggressive 700+ horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance F90000285 Flex Fuel HP Pump The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 500hp. Highest flow in-tank brushed fuel pump offering from TI Automotive Featuring award winning DCSS technology E85 compatible Internal check valve prevent fuel system pressure bleed down prevent extended cranks High pressure relief setting support supercharger and turbo applications Capable of supporting 900+HP at 60PSI naturally aspirated applications Flush mountable to existing hanger with installation kit 400-1168 Fuel: GAS & E85 Horsepower: 900+ at 60PSI, naturally aspirated applications Over All Pump Length: 131mm Main Housing Diameter: 39mm Lower Housing Diameter: 50mm Fuel Inlet Diameter: 11mm OD Fuel Outlet Diameter: 11mm OD Flow Rate: 470lph @ 40psi (120+ gph) Test Voltage: 13.5 Volts 400-0085 Install kit has been discontinued and replaced by 400-1168 Walbro 525LPH - TI Automotive TCD470 Fuel Pump Highest flow in-tank brushed fuel pump from TI Automotive Walbro Part Number: F90000285 Hellcat + Install Kit 400-1168 Horsepower: 900HP+ at 60PSI, naturally aspirated applications Flow Rate: 470LPH @ 40psi (120+ gph) Fuel: GAS & E85 Caution: Extremely High Counterfeit Rate - Buy from an Authorized Dealer VPW Australia Note: Does not include strainer - can be used with # PFEFS906 OR PFEFS912
