Wilwood M/C Tandem Compact Integral 1.12 Dia Die Cast Dual Outlet W (26015543BK) 260-15543-BK
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Wilwood M/C Tandem Compact Integral 1.12 Dia Die Cast Dual Outlet W (26015543BK)
Notes: Wilwood M/C Tandem Compact Integral 1.12 Dia Die Cast Dual Outlet W/Pushrod Mustang Black

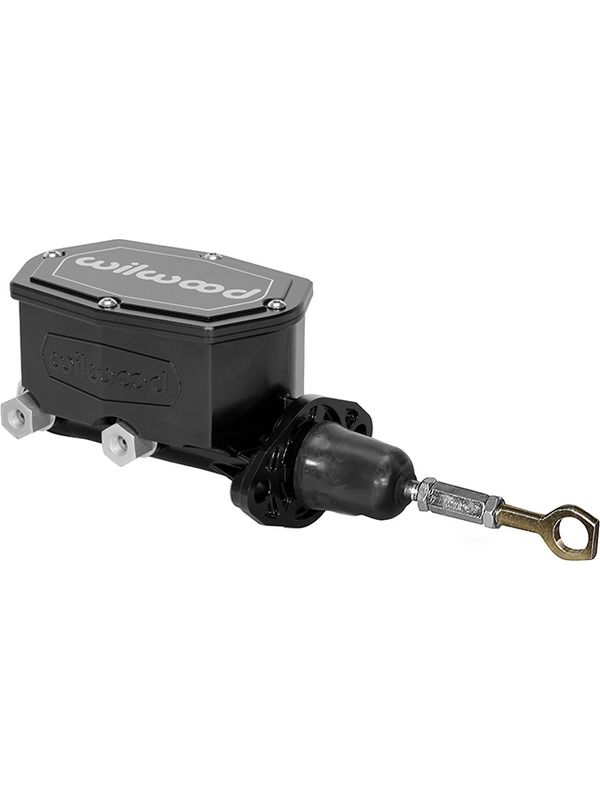

Wilwood's Compact Tandem Master Cylinder for Mustangs comes with the correct pushrod; 4 bore sizes; 7/8 through 1-1/8th and is available in 2 finishes ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They're designed for mount flanges from 3.22 to 3.40, which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10 with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.
