Wilwood Pedal Assembly Swing Mount Adjustable Single Clutch Pedal Kit 34016381
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

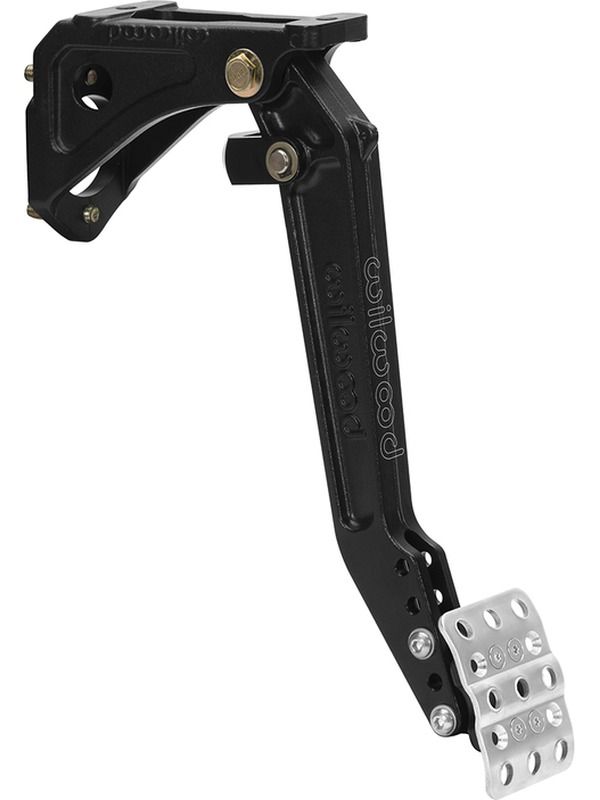

Wilwood Pedal Assembly Swing Mount Adjustable Single Clutch Pedal Kit
TheSE pedal assembly uses standard racing master cylinder mounting patterns. Wilwoods compact, high volume, and combination remote master cylinders mount directly to the pedal assembly, as do most other high performance master cylinders. All master cylinder mounting hardware is included with the pedal assembly. Master cylinder flange should mount flush to pedal assembly and be held in place with enclosed washers and locknuts. The clevis on each pedal has a 5/16-24 thread. Make sure to use a jam nut on the master cylinder pushrod when threaded into clevis and check that pushrod is allowed to fully retract when pedal is released. FEATURES Brake and clutch pedals have three adjustable ratios ranging from 5.50:1 to 6.25:1 Adjustable stainless steel pedal foot pads High strength computer design and lightweight construction Includes brake balance bar and clevises High- strength steel master cylinder mounting studs Use with Wilwood compact, high volume, or combination master cylinders Easy mounting location Wilwoods own black E-Coat finish Finest quality hardware Keeps master cylinders away from heat source
