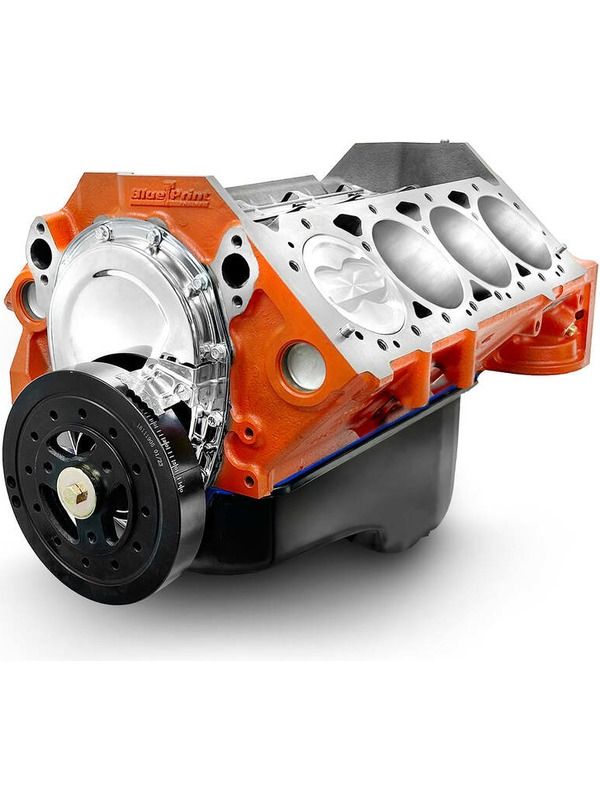

BluePrint Engines Crate Engine Fits GM Chevy SB Short Block Plus BP38321SP
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
BluePrint Engines Crate Engine Fits GM Chevy SB Short Block Plus
HP and Torque: 432 HP / 450 FT. LBS
Compression Ratio: 9.5:1 with 64cc Head and .041" Thick Gasket - 18 cc Dish Volume
Camshaft: Hydraulic Roller Cam - .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050 - 114 LSA
Pistons: Forged
Crankshaft: Forged Steel Crank - 3.750" Stroke and 5.700" Rods
DETAILED INFORMATION
Description
- HP and Torque: 432 HP / 450 FT LBS
Compression Ratio: 9.5:1
Forged Pistons
Forged Crank
- 4 Bolt main
- 1 piece rear main seal.
- 4.00" bore
- Passenger side dipstick
- Align honed main bearing bore
- Cylinders honed on computer-controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
- New forged crankshaft, 3.75" stroke
Forged pistons, 18CC Dish
Forged rods with 150,000 PSI bolts
High volume oil pump
Hydraulic roller cam
Heavy duty double roller timing set
Harmonic balancer
- Cam Type: Hyd Roller
.495 Intake .502 Exhaust
220 Intake / 224 Exhaust duration
@ .050 - 114 degree lobe separation
- 34 degrees total (at 3500 RPM)
- Oil pan and timing cover
Engine Accessory Specifications
BluePrint Engines recommends the parts and specifications listed below.If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Fuel Delivery Type: Carbureted 750CFM +, pending cylinder head choice
Spark Plug: Cylinder head specific
Harmonic Balancer: BPP350 - Non Weighted, 8" diameter
Flexplate/Flywheel: Weighted, 1 pc RMS
Stall Converter: 2400+
Intake Manifold: N/A
Fuel Recommendation: 91 Octane or higher, pending cylinder head choice
Timing (Initial/Total Advance): Initial timing - 10-16 and Total timing 32-34
Firing Order: 1,8,4,3,6,5,7,2
Total Oil capacity with production oil pan, and Correct BPP51061 Filter : 5 Quarts
