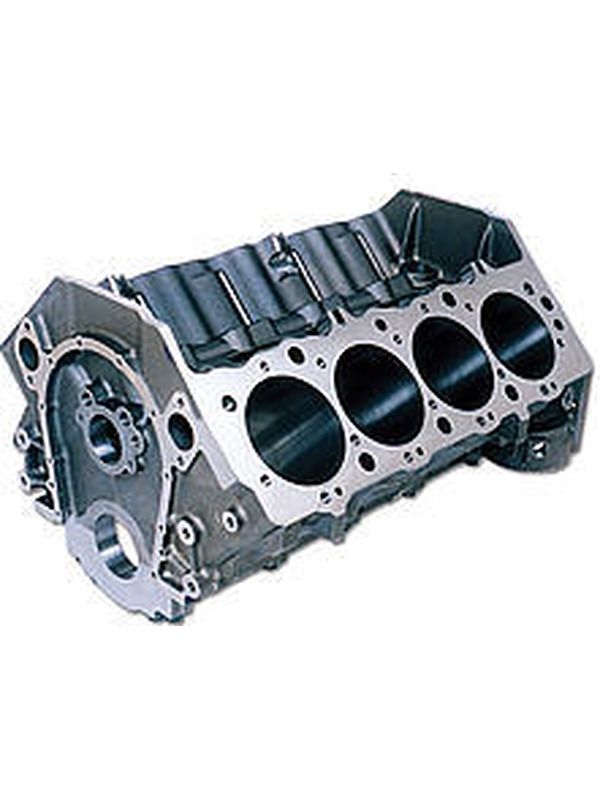

Dart Bbc Big M Sportsman Block 10.2Deck 4.50 Bore Iron Caps 31273454
MPN: 31273454
|
RPI: 185757
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Big M Sportsman seriesblocks are engineered to bestrong, reliable, easy tobuild and affordable. Withmultiple deck heights andbore sizes up to 4.600",the Big M Sportsman blockgives you the versatility tobuild a wide variety ofengine combinations. A truepriority main oiling systemoils the main bearings beforethe lifters for extrareliability.
Features:- Standard9.800" and tall10.200" deck heightsavailable for strokerengines.
- Standard4.250" , 4.500" or4.600" bore sizes withsiamesed extra thick cylinderwalls to resist cracking andimprove ring seal (minimum.300" thick with4.625" bore).
- Uses +.300" tall Gen VIstyle lifters. Modificationfor Gen IV style available.
- Scalloped outerwater jacket walls improvecoolant flow around thecylinder barrels to equalizetemperatures.
- 2 boltfront and rear and 4 boltinterior ductile iron maincaps have splayed outer boltsfor extra strength.
- Crankshaft tunnel hasclearance for a 4.500"stroke crank with steel rodswithout grinding.
- True priority main oil systemlubricates the main bearingsbefore the lifters. Ourstepped main oil gallery(9/16" to 1/2" to7/16") increases theflow of oil to the crank athigh rpm, and our front oilcrossover eliminates internaloil leaks around thedistributor shaft.
- Oil filter pad is drilled andtapped for an external oilpump.
- Lifter valleyhead stud bosses preventblown head gaskets.
- Rear main cap uses standardoil pump and two piece seal -no adapter required!
- Mechanical fuel pump boss,clutch linkage mounts, andside and front motor mountssimplify installation in anychassis.
- Dual oil panbolt patterns fit standardand notched oil pans.
- Coated cam bearings, freezeplugs and dowels are NOT/li>
